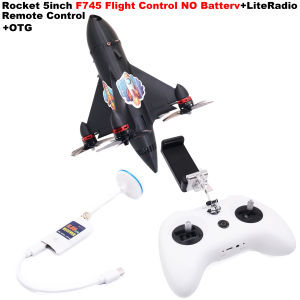

B-CUBE Rocket 5inch FPV Frame Kit Carbon Fiber Racing Drone Quadcopter Freestyle INAV Beatflight F745 H743 PX4 Flight Control

Rocket high-speed 5-inch FPV DroneProduct parameters:Wheelbase: 133mm (5inch)Shell material: PLA 3D printedCollor:Black/Origan/Green Rocket Height: 316MM Weight: Approximately 34g Thickness: Center plate 1.0mm, arm 4.0mm Paddle: 5inch paddle Flight control hole spacing: 2020MM (M2) 3030MM (M3) Video transfer hole spacing: 3030MM (M3) Motor installation hole positions: 12mm * 12mm (M3) Battery: 3S 5200mAhRecommended configuration:Motor: 2205 2300KV motor ​ESC: B-CUBE 4IN1 45A 30MM ​Battery: 3S ​Paddle: 5inch paddle ​Video transfer: B-CUBE VTX1000​ B-CUBE F745 V2 Flight ControllerFeatures: 1. The F745 V2 is a 3-8S 36x36mm mini flight controller with a 16MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference. ​ 2.  The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity. ​ 3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance. ​ 4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button. ​ 5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight. Descriptions:F745 V2 is a major upgrade, offering enhanced performance and precision. It features a CPU upgrade from STM32F745VG to STM32F746VG, boosting processing power for faster response and improved flight stability. The IMU has been upgraded from MPU6000 to ICM-42688-P, providing lower noise, higher sensitivity, and better vibration resistance. These enhancements ensure more accurate flight control, superior gyro performance, and greater reliability. Designed for high-speed FPV applications, V2 delivers smoother flights, faster responsiveness, and exceptional handling in demanding conditions.Specifications:Chip:STM32F746VG(216MHZ)Gyro:ICM-42688-PBarometer:SPL06-001OSD Chip:AT7456EBlack box:16MMLED Program:SupportBB buzzer:SupportInput voltage:3-6SI2C Connector:SupportBEC:5V/2.5ABEC:10V/2.0ACam Input:SupportUSART:UART1,UART2.UART3.UART4.UART6.UART7Receiver:ELRS(CRSF).TBS(CRSF).SBUS.IBUS.DSM2.DSMXGPS:YESCOMPASS:YESHD O3:YESESC Signal:Dshoot150.Dshot300,Dshot600USB:TYPE-CCurrent Port:Yes.Voltage Sensor:YesDFU Button:YESFC firmware:betaflight_4.4.2_JHEF745V2.HEX / inav_8.0.0_JHEMCUF745.HEXInstall hole:30.530.54MMBoard size:3636MMWeight:7.5g B-CUBE H743 Flight ControllerFeatures:1. The H743 is a 3-6S 36x36mm mini flight controller with a 128MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference. ​2.  The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity. ​3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance. ​4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button. ​5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight. ​ Descriptions:H743 is a major upgrade, offering enhanced performance and precision.Boosting processing power for faster response and improved flight stability. The IMU has been upgraded todouble ICM-42688-P, providing lower noise, higher sensitivity, and better vibration resistance. These enhancements ensure more accurate flight control, superior gyro performance, and greater reliability. Designed for high-speed FPV applications, H743delivers smoother flights, faster responsiveness, and exceptional handling in demanding conditions.Specifications:l Chip:STM32H743VIT6(480MHZ)l Gyro:ICM-42688-P2l Barometer:SPL06-001l OSD Chip:AT7456El Black box:128MMl LED Program:Supportl BB buzzer:Supportl Input voltage:3-6Sl I2C Connector:Supportl BEC:5V/2.5Al BEC:10V/2.0Al Cam Input:Supportl USART:UART1,UART2.UART3.UART4.UART6.UART7l Receiver:ELRS(CRSF).TBS(CRSF).SBUS.IBUS.DSM2.DSMXl GPS:YESl COMPASS:YESl HD O3:YESl ESC Signal:Dshoot150.Dshot300,Dshot600l USB:TYPE-Cl Current Port:Yes.l Voltage Sensor:Yesl Firmware: cleanflight/betaflight/inav/ardupilotl FC firmware:betaflight_4.5.2_STM32H743_JHEH743_HD.hex/ inav_8.0.1_JHEMCUH743HD.hex / arducopter4.6_with_bl.hexl Install hole:30.530.54MMl Board size:3636MMl Weight:7.9g VTX1000 1W Video Transmitter Description:Model: MINI MS-1672 FPV camerasSensor: 1/1/8 "CMOS D1080HHorizontal resolution: 2000TVLHorizontal field of view: 165Lens: 2.1mm lensVideo format: NTC&PAL (adjustable)Image scale: 4:3&16:9 (automatic recognition)Wide Dynamic Range: Super WDRNoise reduction: 3DNRLow illumination: 0.001LUXVideo output: CVBSDay and night: external/internal/black and white/colorLanguage: (English/Chinese/Traditional Chinese/pyccnna)ESOABIK/TTASSNO/FRABCAUS/POSDIM/PORTUGUES/JapaneseElectronic Shutter: PAL: 1/50-100000NTSC: 1/60-100000Wide voltage input: 5-36VWorking temperature: -20-60Weight: 110gDimensions: 19 19 19mmResolution: 960 * 1080Feature:Upgraded Mista 2000TVL 2.1mm Wide Angle HD 1080P CCD PAL/NTSC Switchable 16:9 OSD FPV Camera.Package included:1 x Upgraded Mista FPV Camera Lithium Polymer Battery Specification SheetBasic InformationBrand: TCBType: LiPo Battery (Lithium Polymer)Capacity: 5200 mAhVoltage: 11.1V (3S)Discharge Rate: 35C (Continuous)Connector: XT60Dimensions: 130mm x 40mm x 25mmElectrical CharacteristicsNominal Voltage: 11.1VCharging Voltage: 12.6V (4.2V per cell)Discharge Rate: 35C (Continuous), potentially higher peak rateInternal Resistance: Low resistance designCompatible Voltage Range: 9.0V - 12.6VPhysical CharacteristicsWeight: Approximately 310g (depending on design)Casing Material: High-strength polymer casingColor: OrangeDimensions: 130mm (Length) x 40mm (Width) x 25mm (Height)Usage and MaintenanceCharging: Use a balance charger with a charging current not exceeding 1C (5.2A), charging temperature 0-45°C.Discharging: Maximum discharge current 182A (35C x 5.2Ah), avoid over-discharging (below 9V).Storage: Store at 3.8V per cell (11.4V), temperature 0-40°C, humidity < 70%.Safety Precautions: Avoid short circuits, overcharging, over-discharging, and high-temperature environments. Follow battery safety guidelines. ELRS 2.4G Receiver RXProduct Description: ​ExpressLRS aims to provide the best completely open, high refresh radio control link while maintaining a maximum achievable range at that rate with low latency.SPECIFICATIONS 1 ​●Brand:B-CUBE ​●Model:ELRS 2.4G NANO ​●RF Freq:2.4Ghz ​●IC:SX1281+ESP8285 ​●TX Power:100mW ​●Color:Black ​●Connector:IPEX 1 ​●Input Power:3.6-5.5V ​●Weight:0.4g(receiver only) ​●Size:11mm18mm ​●Firmware: BETAFPV Nano 2400 RX 3.3.0Package Included: ​Nano Receiver x 1 ​T type receiver antenna x 1 ​Heat shrink tube x 1 ​30AWG Silicone Wire x 4 LiteRadio 3 Radio TransmitterLiteRadio 3 is a remote control radio transmitter designed primarily for RC models, including multirotor, airplanes. It gives you more than you ever thought possible from an entry-level 8-channel radio.8 channels in total.USB Joystick support for most practice simulators.Nano module bay for external TX module.Newly designed joystick gimbal for longer usage life.Support BETAFPV Configurator for updating, configuring, and tuning.Provide ExpressLRS 2.4G protocol version .Built-in 2000mAh battery and USB charge supported.5.8G VTX OTG ReceiverNote:If you use a 2.4G remote control, some remote controls may interfere with the 5.8G signal after increasing the frequency through the 2.4G frequency band. Using a high-frequency band frequency of 5945MHz for video transmitters can avoid this problem. Or keep the video receiver away from the 2.4G remote control.Features:1.150CH 5.8Ghz analog signal, 1500 scans cover all bands. ​2.Resolution 640480 30fps. ​3.Mushroom RX antenna, omnidirectional pointing, strong transmission signal. It can greatly improve the stability and distance of 5.8G image to video transmission. ​4.Can display frequency spectrum, to check the signal strength of antenna or transmitter. ​5.Support dual display on smartphone, can be used as VR goggles. ​6.Please calibrate it in open area, and keep away from transmitter more than 30m. Long press the menu button and power on receiver, enter into calibration mode.Descriptions:1.Support OTG cable connect to android smartphone or tablet. ​2.Single Antenna FPV receiver for Android Tablet PC Monitor.Specifications:Frequency: 5645MHz-5945MHz ​Resolution: 640480 30fps ​Working Current: USB 5V 190mA ​Connector: RP-SMA ​USB: Type-C ​Working Temp.: -10°~65° ​Size: 50MM30MM ​Weight: 26gWorking MethodsInstall APP:1.Download apk app from here,https://github.com/BCUBE-RC/VTX-OTG/ ​2.Use OTG cable connect with receiver ​3.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal automatically.PC:1.Use usb cable to connect it with PC. ​2.XP: open the camera;WIN7: install AMCP camera software;WIN10: open camera. Or MP groundstation. ​3.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal.AV:1.Use 4P cable (should DIY by player), 5V power input. ​2.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal.Note:1.Do not support IOS system. ​2.Some smartphones should open the otg function before use. ​3.Some players have complained that it has the issue of flicker or short distance. After testing in open area, the reason has been found to be its high scanning accuracy,that the transmitted frequency is reflected by wall indoors and make the real frequency detected by receiver higher than it should be. So it is quite important to operate it in an open area and keep the receiver and transmitter more than 30m.Package Included:1 x 5.8Ghz 150ch Receiver ​1 x Type-C OTG cable ​1 x Mushroom head RX Antenna BLHELI_S 45A 4IN1 3-6S Brushless ESCBLHELI_S 45A 4IN1 3-6S Brushless ESCSize: 4139.55mmHole distance: 30.5*30.5/5mmWeight: 13gInput voltage: LIPO 2-6SContinuous current: 45AMaximum current: 50A (10 seconds)Processor: EFM8BB21F16GFirmware: BLS J_H_30_REV16_7Drive signal support: DShot300-600/Multishot/Oneshot/PWMCurrent sensor: SupportThe ESC has filter capacitors on board to suppress the electromotive power transmission, stabilize the battery voltage and protect the components of ESC vuelo control precisionExternal USB RS2205 2300kv Motor:Framework: 12N14PNo. of Cells: 3 - 4SLength:31.7mmShaft: M5KV: 2300Max Thrust: 1024gDiameter: 27.9mmPropeller Suggested: HQ 5045 BNWeight: 30gFeatures:1. Race Spec Performances2. High Strength N52 Neodyum Magnets3. Active Cooling Fins Greatly Reduce Motor Temeratures4. Low CG, Light Weight Design5. Japanese Bearing For Performances6. Enchance Anti Off U Ring For Safety & Stablility7. Dual Lock CW / CCW Locknuts Gemfan D4-5Size: 4 inchesPitch: 3.8 inchesWeight: 5.5gAperture: M5Color: Midnight GreyRecommended motor: 24082506Takeoff weight: 600gPackaging method: 2CW+2CCWMaterial: PCFeatures:Suitable for 4-inch culvert machinesCan provide high tensile strengthThe noise of the propeller blade is low
