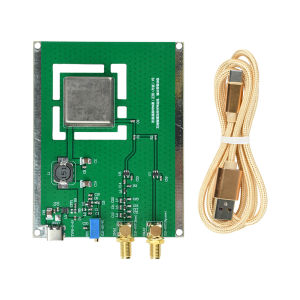

diymore 10M Reference Plate Constant Temperature Crystal Oscillator Module 10Mhz Square Wave Sine Wave Output Ocxo Board Type C

Parameters: Name: 10M reference board Interface: Type C Voltage: 5V/1A Square wave output: 10MHz/13DBM (square wave requires a 50 ohm load) Sine wave output: 10MHz/3DBM (1VPP) Dual channel clock source (sine+square wave), supporting fine tuned voltage controlled clock selection, with output with driver stage. Function Introduction: A、 Powered by TYPE-C and providing RF specific LDO power supply, the constant temperature crystal oscillator is more stable B、 The voltage controlled clock control port provides high-precision voltage reference and higher frequency stability C、 Output with sine wave (7th order elliptical low-pass filter) and square wave output, providing a driver IC that can drive a 50 ohm loadPackage Include: 1X constant temperature crystal oscillator module (optional without casing/with casing) 1X1 meter power cord Type C interface
