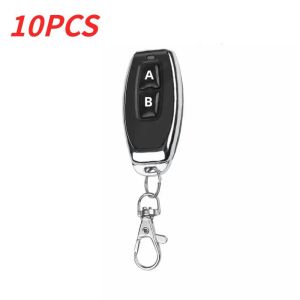

10pcs 433MHZ 2 Channel Code Remote Control Auto Electric Learning Code Gate Garage Door Opener with Keychain

Input Voltage: 12 V, RF working mode: Superheterodyne Receiver sensitivity: > 97 dbmTransmitting distance:> 100 m ( open space)Decoding mode: MCU software decodingRemote storage: 20Support remote type: EV1527 learning codeWorking mode: Momentary, toggle, latching time delay (5s ,10s ,15s )Output terminal: NO , NC , COMDimension of PCB:35 x 30 x 18 mm (L,W,H)Remote control battery: 2 x 3 V CR2016 button batteriesNote: Maximum input power is 250 VRemote programming-Clearing the code :Push the learning button on the receiver 8 times , the codes will be reset.After clearing the code, remotes will be need to be recalibrated-Momentary modePlease contact us for detailed use instructions-Learning the code : ( Toggle - Press remote button to turn on, press again to turn off.)Press the learning key on the receiver 2 times, Wait for a moment , the LED will be off , it comes into learning state .-Push the learning key on the receiver 3 times , the LED (on the Receiver)will blink 3 times.When the LED is on, press the button of the remote control(You want to let it learn), Push the remote button A, LED flash for 3 times .Push the remote button B, Led flash for 3 times .After 3 seconds , the LED indicator will be off , Learning to succeed.Model Number: Wireless Remote Control SwitchWireless Communication:RFFrequency:433 MHzPackage included10* RF 433 Mhz Remote Control (with battery)
