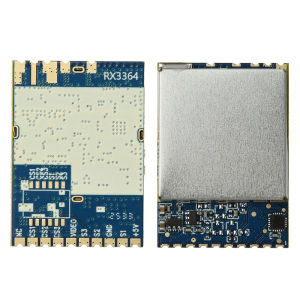

diymore | RX3364 3.3G Wireless FPV Image Transmission Module Simulates Wireless Audio And Video Transmission Reception Module

Features:1. High integration design: The module adopts a high integration design, which has the advantages of small size, low power consumption, and high sensitivity.2. Simple and easy-to-use connection method: Simply connect the antenna to easily receive sound and image signals, with easy operation.3. Broadband reception capability: Supports a reception frequency range of 3060-3500MHz to ensure stable and reliable signals.4. Excellent video performance: The video output impedance is 75 Ω, providing clear and stable image quality.5. Excellent environmental adaptability: The working temperature range is -10 ° C to+65 ° C, which can adapt to the usage needs of various environmental conditions.Parameter:DC CharacteristicsPOWER SUPPLY：5.0VCurrent Consumption：(380 30)mAEnvironmental SpecificationOperating Temperature：-10~+65°CStoring Temperature：-30~+85°COperating humidity：85%RHRF:Receiving frequency range：3060-3500MHZVoltage Standing Wave Ratio：2:1Demodulation system：FM/PLLIntermediate frequency IF: 480MHzANT.inputimpedance：50Ω, TyP.LO Frequency stabilization：±200kHzLO Frequency Precision：±200kHzLO Control：PLLlnput LO Leak：-65dBmReceiving Sensitivity：-95dBm±2InputLevel Range：-95dBm~+5dBmVideo Characteristics)Video Outputimpedance：75Ω, TyP.Video Output Level)：1±0.2Vp-P. TyP.Video Polarity：NEGATIVEVideo Frequency Respone：±5 dB, Max.50Hz ~ 6MHzDifferential Gain：±5 %, MaxDifferential Phase：±5 Deg, Max3DbIFWIDEBAND：16.5MHzSignal to Noise Ratio (S/N): 38dB, MinPackage Include:1X module
