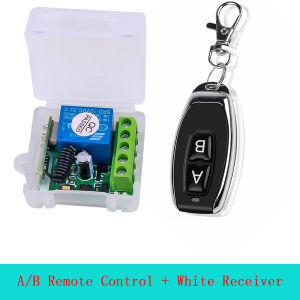

Remote Control RF433Mhz Wireless Light Switch DC 12V 1CH 10A Relay Receiver Transmitter for Door Electromagnetic Lock DIY Module DC RF Wireless Remote Control Switch Receiver Transmitter Set with Learning Remote Controller Mini Controller House Wall Light

Please Note:The system can store for 25 pcs of remotes , if the remote get more than 25 pcs , the initial remote control will be lost .Specifications:Receiver(switch)

Input voltage: DC 12V

Working current: 10A

Maximum load power: 110W

Frequency: 433Mhz

Support encoding format: EV1527

Wiring method: NC COM NO

Working mode: Momentary, Toggle, Latching Time delay (5s ,10s ,15s )

Remote Controller:

Operating RF Frequency: 433MHz.

Coded System: 1527 Learning Code.

Working Voltage: DC 3V.

Working Current: <25mA

Transmitting Power: 10mW.

Wireless Operating Distance: 50m(Free Space).

Transmission Rate: 50 ~ 60KHz.

Frequency Deviation: +0.2MHz or -0.2MHz.

Color: Black.About Working Mode:Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects.

Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects.

Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnect.

Time Delay Mode: Press the remote control button, the relay connects; Start timing when release the remote button, the relay disconnect automatically after 5s or 10s or 15s01. Jog Mode: Press the learning button once; the LED will flash once and remain on. Then press the controller button; the LED will flash three times consecutively. Pairing successful.02. Self-Locking Mode: Press the learning button twice; the LED will flash once and remain on. Then press the controller button; the LED will flash three times consecutively. Pairing successful.03. Interlock Mode: Press the learning button three times; the LED will flash once and remain on. Then press the controller button; the LED will flash three times consecutively. Pairing successful.04. 5-Second Delay: Press the learning button four times; the LED will flash once and remain on. Then press the controller button; the LED will flash three times consecutively. Pairing successful.05. 10-Second Delay: Press the learning button five times; the LED will flash once and remain on. Then press the remote control button; the LED will flash three times consecutively. Pairing successful.06. 15-second delay: Press the learning button 6 times; the LED will flash once and remain on. Then press the controller button; the LED will flash 3 times consecutively. Pairing successful.07. 20-second delay: Press the learning button 7 times; the LED will flash once and remain on. Then press the controller button; the LED will flash 3 times consecutively. Pairing successful.08. Power On: Press the learning button 8 times; the LED will flash once and remain on. Then press the controller button; the LED will flash 3 times consecutively. Pairing successful.
