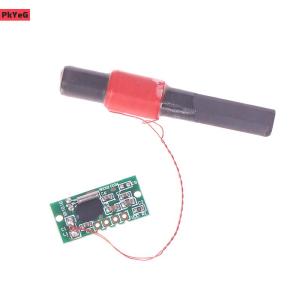

[LIXIAOJU] WWVB 60KHz Single Frequency Modules Receiver Module Radio Time Module Radio Clock Radio Module DCF Receiver Module With Antenna

PkYeG. Technical Specifications. Product number: WVB-0860N-03A. RCCM category: WWVB 60KHz single frequency module. PCB size: 25.0x11.5x1.0mm FR4. Antenna size: AR8x60mm High Q. Nominal frequency: 60KHz±300Hz. Sensitivity: 28±2dB. Receiving IC: CME6005. Operating voltage: 1.1. 3.3 V. Current consumption: 85 µA max. Receiving frequency: 60KHz. Board size without antenna LxWxH: 22x13.5x1 mm. Antenna quality: LxØ: 60x10mm. Scope of delivery: 1 piece. DCF receiver module with antenna. connect: Ground Pin G. Operating Voltage Pin V. data pin T. Power On Off Pin P1. Important note: PIN P1 is an on off switch and must be set to logic low. Note: The single-frequency module cannot switch between different frequencies of DCF WVB HBG BPC. The JJY dual-frequency module can switch between the two frequencies of 40K60K. As a single-frequency module, it can only receive signals in this frequency band. Package Included: 1xReceiver module. Technical Specifications. Product number: WVB-0860N-03A. RCCM ca
