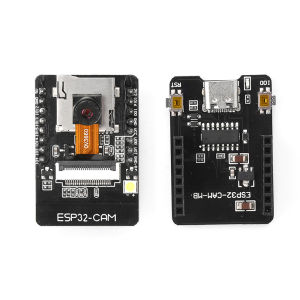

diymore ESP32-CAM-MB WIFI BT Development Board OV3660 Camera Module USB to Serial CH340

Parameter: Core: Xtensa dual core 32-bit LX7CPU with a maximum frequency of 240MHz Working voltage: 4.75-5.25V, recommended 5V SPIFlash: default 32mbit RAM: internal 520KB+external 4MB PSRAM Wi-Fi： 802.11b / G / n / e / i BT: BT 4.2BR/EDR and BLE standards Supports interfaces (2Mbps): UART, SPI, I2C, PWM Support TF card: Supports up to 4G IO ports: 9 Serial port speed: default 115200bps Spectrum range: 2400~2483.5 MHz Antenna shape: Integrated PCB, 2dBi gain Transmission power: 802.11b：17 ± 2dBm (@ 11mbps) 802.11g：14 ± 2dBm (@ 54mbps) 802.11n：13 ± 2dBm (@ MCS7) Receiving sensitivity: CCK，1mbps：-90dBm CCK，11mbps：-85dBm 6Mbps (1 / 2BPSK)：-88dBm 54Mbps (3/464-QAM)：-70dBm MCS7（65Mbps、72.2 Mbps）：-67dBm Working temperature: -20 ℃~70 ℃ Storage environment: -40 ℃~125 ℃,<90% RH OV3660 camera core parameters: Resolution: 3 million pixels (2048 × 1536) Optical size: 1/5 inch Interface type: SCCB (Serial Camera Control Bus) Frame rate: up to 15 frames per second Power supply: Core voltage 1.5VPackage Include: Set 1: Development board X1 Burning Seat X1 Camera X1Set 2: Development board X1 Burning Seat X1 Camera X1 2.4G antenna rod X1 IPX adapter cable X1
