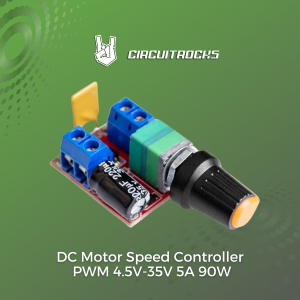

Circuitroks DC Motor Speed Controller PWM 4.5V-35V 5A 90W

Circuitrocks. SPECIFICATIONS. Working voltage: DC3V-35V. 90W maximum power control). Static current: 0.015A standby). PWM duty ratio: 1%-100%. PWM Frequency: 10khz. Model: ZS-X4A. DC Motor Speed Controller PWM 4.5V-35V5A 90W. Motor speed problems require motor speed controller solutions. This DC Motor Speed Controller PWM 4.5V-35V5A 90W allows you to control your DC motor's speed using PWM. You can also control the direction, apply a soft start and smooth stop. Note that this PWM controller can only be connected to DC, or else it will burn. The positive and negative input pins should also not be reversed. Adjust the potentiometer knob to change the output duty cycle and see the motor speed change. Specifications: Operating voltage: DC4.5V-35V. Output current: 0-5A. Output power: 90W max). Quiescent current: 7uA standby). PWM duty cycle: 1-100%. PWM frequency: 20khz. Size: 30mm x 26mm x 14mm without handle
