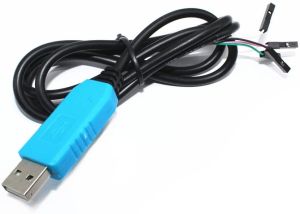

Circuitrocks USB to TTL Serial Cable Debug Console Cable Raspberry Pi - Lazada

Circuitrocks. The cable is easiest way ever to connect to your microcontroller/Raspberry Pi/WiFi router serial console port. Inside the big USB plug is a USB. Serial conversion chip and at the end of the 36 cable are four wire-red power, black ground, white RX into USB port, and green TX out of the USB port. The power pin provides the 5V500mA direct from the USB port and the RX/TX pins are 3.3V level for interfacing with the most common 3.3V logic level chipsets. Because of the separated pin plugs, this cable is ideal for powering and connecting up to the debug/login console on the Raspberry Pi or BeagleBone Black. Connect the pins as shown to power the Pi or BBB and establish the RX/TX link. Then install the Windows XP/Vista/7 or MacOS X PL2303HX drivers on your computer and connect with a terminal program at 115200 baud. Windows 8 10 is now supported If you're using Windows 7 and you have issues, try this Prolific driver version 1.013. And if you're using an older version of Mac OS X
