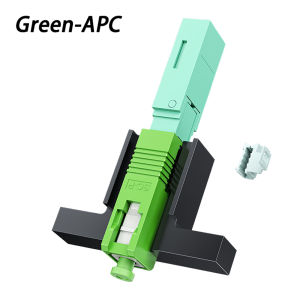

Yasmos sc connector butterfly SC/UPC SC/APC fiber optic connector

✅ Name: Aircraft SC UPC/ APCEmbedded Fiber Cold Connector✅Product Type: SC UPC/APC ECC Accelerated Connector for Optical FiberEasy to Connect with Low Insertion Loss, with a Fiber Optic Docking Point and Axial Clamping Force at the Fiber Optic Docking Point. During Fiber Optic Docking, the Gap between the Two Fiber End Faces Is Small, So the Link Loss Is Often ≤ 0.3dB✅ Specification parameters:1.Operating Temperature: -40 ° C +75 ° C2.Insertion Loss: ≤ 0.3db3.Return Loss:>50dB4.Core Insert Material: Ceramic Core Insert5.Product Standard: Standard6.Overall Size: Single: 60mm * 10mm,10 One Boxed: 14.6cm * 7.2cm7.Working Wavelength: 1200nm ~ 1600nm8.Applicable Optical Cable: 23 Butterfly Optical Fiber Cable9.Weight: 0.004kg/One✅Application Scope:1. Covering the telecommunications field, cable television networks, and Fiber to the Home (FTTH) scenarios.2. Applicable to Local Area Networks (LAN) and Wide Area Networks (WAN).3. Can be used for fiber optic distribution frames, ordinary patch panels, and Optical Network Units (ONU).4. Used for maintenance work or emergency restoration of fiber optic networks.✅ Function (Features):1. The connector is reusable with no loss in performance.2. Pre-grinding treatment of APC (Angled Physical Contact)/UPC (Ultra Physical Contact).3. Simple and quick assembly.4. The installation time is extremely short, only 3 minutes.5. The insertion loss is as low as 0.3dB.6. The return loss is ≥ -40dB.7. The reflectivity is between 45 and 53dB.8. The operating temperature range is -40 to +75°C. The set contains: 1Fiber Optical Connector✅ Friendly reminder:【Online Services】:9:00-18:00 (Monday to Saturday)Services on Sundays or holidays cannot respond in time.【Delivery time】:48 hours delivery (except holidays)【After-sale service】:Absolutely responsible for product problems, solve every problem for you!If you are satisfied with our products,please rate us (⭐⭐⭐⭐⭐)✅ Notice:1. Due to manual measurement, please allow a difference of 1-5 mm, thank you.✅2. Due to the differences between different display, the picture may not reflect the actual color of the product.✅✅ After-sales service: Yasmos offers new and high quality products for your shopping pleasure. After receiving the goods, if you do not understand the use of any product, or have product after-sales problems, please feel free to contact customer service, we are happy to solve your problems!✅ Brand introduction: Guarantee the highest quality, the most favorable price, the fastest service and the most pleasant cooperation.
