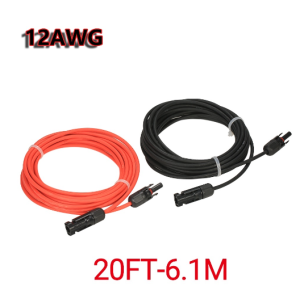

1 Pair 20/30 Feet Black Red High-Quality 10/12 AWG Solar Panel Extension Cable Wire with MC4 Female and Male Connector

Conductor: Stranded Tinned CopperInsulation: Halogen Free Crosslinked PolyolefinSheath: Halogen Free Crosslinked PolyolefinNominal Cross-Section:2.5, 4.0, 6.0m㎡Rated Temperature: -40~﹢90℃Rated Voltage DC: 1/1.8kVRated Voltage AC: 0.6kVRated Current: 33~57aWaterproof grade: ip67Weathering Resistance: Sun Res.Burning Behavior: (IEC60332-1)Black Cable M4 Connector: MaleRed Cable M4 Connector: FemaleTECHNOLOGY PARAMETERS 0f 10AWG(4mm2):Rated Temperature(℃) = -40~90Rated Votage(AC/DC（kV）) = 0.6~1.0/1.8Cable Core(NO.) = 1Cross-Section Area(mm2) = 6Cross-Section Area (AWG) = 10Diameter Of Wires/ Number(NO./mm) = 84/0.3Thickness Of The Insulation(mm) = ≥0.5Thickness Of The Sheath(mm) = ≥0.5Outer Dia.(mm) = 6.8-7.2Conductor Resistance（20℃）(Ω/km) = ≤3.39Voltage Test On Completed Cable(kV/min) = 6.5/5 No BreakdownOne pair (1 piece black + 1 piece red) of 10AWG/12AWG solar extension cable.Both solar cables are terminated with MC4 connectors.The cable is designed for outdoor use and is moisture, UV and corrosion resistant.Using large diameter cable to minimize power loss in your solar panel system.Supior Durability: The insulating glue Sun panel is far more durable than traditional glass and aluminum models, Charge Controller help you expand your system up to a maximum of 400W.Features:One pair (1 piece black + 1 piece red) of 10AWG/12AWG solar extension cable.Both solar cables are terminated with connectors.The cable is designed for outdoor use and is moisture, UV, and corrosion-resistant.Using a large diameter cable to minimize power loss in your solar panel system.Specifications:Cable Length & Wire Gauge: 10Ft 10AWG / 20Ft 10AWG / 30Ft 10AWG / 30Ft 12AWG (Optional)Quantity: 1 PairMaterial： Copper wireRating Voltage: DC: 1.8KV; AC: 0.6~1KVDegree of Protection: IP65Fire Rated: IEC60332-1Temperature: -40°C ~ ﹢90°CNormal Cross-Sectional Area of the Conductor(mm2): 6.0
