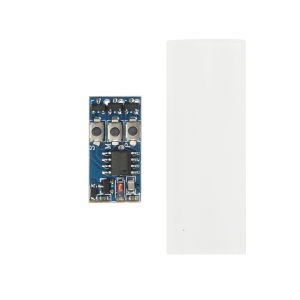

diymore DC5-24V WS2812 Colorful Light Controller Discontinued Flow Light Control Board RGB Light Strip Controller Breathing Atmosphere Light Rainbow Gradient

Product parameters:Fantasy Lantern ControllerInput voltage range: DC 5-24V, DC3-5V two input ranges (3-5V when the back 3V jumper is short circuited)Maximum pixels: 900 RGB chipsWorking mode: 300 combinations of iridescent effects, moving left and rightSports speed: 6-speed settingSupporting LED strip types: WS2811, WS281216703790319034193518129263905 and other single or double line zeroing driver chips for LED stripsSerial port signal output frequency: Single line 800KHz zeroing code driver chip (dual channel output)Input reverse protection: Yes, reverse connection does not burn the modulePower off memory: Yes, all parameters will be automatically saved after settingWorking temperature: -20~+85 ℃Three channel RGB light controllerInput voltage range: DC 5-24V, DC3-5V two input ranges (3-5V when the back 3V jumper is short circuited)Maximum operating current: 3A/channelWorking mode: 5 mode settings1. Monochromatic breathing mode2. Dual color synchronous mixing breathing mode3. Dual color asynchronous mixing breathing mode4. Tri color mixed color calling mode5. Loop modeBreathing time: 8 time settings. 3 seconds to 24 seconds, a total of 8 levels, 3 seconds per levelMixing ratio: 10 levels of mixing ratio settings. 10% -100% color mixing ratioWorking frequency: 3KHz (high working frequency can effectively prevent flicker problems)Power off memory: Yes, all parameters will be automatically saved after settingPower on/off settings: You can set the default power on or off when powered on. Press and hold for 3 seconds to turn on, press and hold for 3 seconds to turn offInput reverse protection: Yes, reverse connection does not burn the moduleWorking temperature: -20~+85 ℃Packing list:Module * 1
