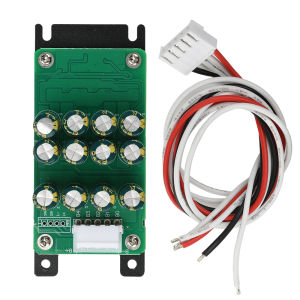

diymore 4S 5.5A Active Balancing Board Capacitor Ternary Iron Lithium Battery Voltage Difference Balance Capacity Repair Protection Recovery

Parameter: Working voltage: 1.8V-4.5V Balanced current: 0-5.5A Equilibrium method: Active equilibrium Working current: ≤ 10mA Static self consumption (balance switch off): ≤ 30uA Normal working range: -20 ℃~70 ℃ Storage temperature (humidity below 90%): -40 ℃~85 ℃ Applicable batteries: ternary lithium, lithium iron phosphate, lithium titanate Size (MAX): 105 * 46 * 25mm Capacitive working principle: The capacitor flies to transfer the charge, and the balancing board is connected to the battery to start the balancing work. It adopts the original brand new ultra-low internal resistance MOS, and the balancing current is 0-5.5A. The more the battery is balanced, the smaller the current will be! The adjacent voltage difference is above 0.1V (current around 0.5-0.7A) and the adjacent voltage difference is above 0.2V (reaching the maximum equilibrium current of 1.2A). The smaller the voltage difference, the smaller the equilibrium current. Suitable for active balancing of 4-series lithium battery packs, using capacitive working principle to achieve energy transfer type balancing, more rapid, effective and efficient energy transfer, high-precision 5MV global balancing, not adjacent balancing, with undervoltage sleep protection. When the voltage is below 3.0V, it will automatically stop entering the sleep state, and the standby power consumption is less than 0.1mAh.Package Include: 1X Balance Board 1X5P connection cable
