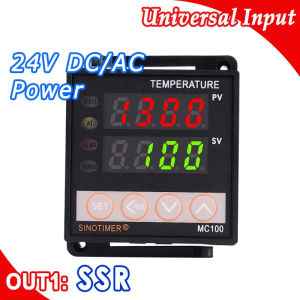

Digital Thermostat PID Temperature Controller Regulator in 24V DC AC Thermocouple K or J sensor Input Output for SSR

Battery Included：NoHign-concerned Chemical：NoneTheory：Temperature ControllerDisplay Type：DigitalPower Type：ChargerCertification：CEModel Number：MC100-24V-SSROrigin：Mainland ChinaMax Measuring Temperature：120°C & AboveStyle：Standing StationBrand Name：SINOTIMERIs Smart Device：NoUse：IndustrialDisplay Size：1.9 Inches & UnderSize：48*48mmInput：UniversalControl output：SSRAlarm output：ALM1Display：Celsius °CPower Supply：24V DC/ACDual Digital PID Temperature Controller MC100,Thermocouple/RTD input,SSR Output,  Power in 24V DC/ACInput: Thermocouple/RTDOutput: SSRAlarm: 1Power: 24V DC/ACFeatures:This is a bid for a dual display universal digital programmable temperature controller that supports many type of thermocouple sensor. It can be powered by 24V DC/AC, Comsumption 5VA. DIN 1/16.Model: MC100, Universal Input+SSR outputPID controlSpecifications:Display: Dual display for Celsius (C)Range: 0-1300'CThermocouple: K,J,S,E,R,B,N,TThermo Resistor: PT100, Cu50Main Output: RELAYPID cooling/heating control1 RELAY alarm: Normal open, capacity 250V/3A AC or 30V/3A DC7 different Dual Output combinations with: high / low / high deviation / low deviation /interval / out of interval / breakage alarmAccuracy: 0.5%Input:K,J,S,E,R,B,N,T,PT100,Cu50Dimension: DIN: 1/16 (48mm x 48mm x 110mm)Weight: about 200gIndividually programmable PID control parameters. P, I, d, controlling period, digital filter coefficient, and more output control ready to connect SSRCompact design: DIN 1/8 great form-factor to be included/build-in to your product.Input: TC(K,J,S,E,R,B,N,T) / RTD (Pt100, CU50) universal input, or 0-20mA signal.Control output: SSRAlarm output: 1 line output, 7 kinds of alarm mode: high/low/high deviation/low deviation/interval/out of interval/breakage alarm.Power Supply: 24V DC/ACPackage include:1PCS×PID Digital Temperature Controller SSR output (in 24V DC/AC POWER,  NOT include thermocouple )1PCS x English User ManualIf you need other specifications,  pls leave messages to us before payment or find the other correct links from our online Store.  Thank you.
