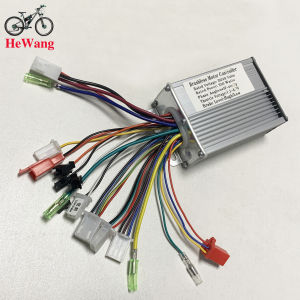

48V 64V 350W/500W/800W/1000W E-Bicycle Square Wave Dual Mode Brushless Motor Controller with Self-Learn Line for Scooter Ebike

48V/64V 350W/500W/800W/1000W Electric bicycle square wave dual mode controller brushless motor controller with self-learning line for scooters battery cars three-wheel electric vehicles350W 48V-64V 6mosvoltage: 48V/60V/64V Rated power: 350W Current: 15-18A

Case size: 106.53.3cm MOS tube: 6 mosfet500W 48V-64V 12mosvoltage: 48V/60V/64V Rated power: 500W Current: 30ACase size: 158.54cm

MOS tube: 12mosfet800W 48V-64V 15mosvoltage: 48V/60V/64V Rated power: 800W Current: 35ACase size: 18.58.54cm

MOS tube: 15 mosfet1000W 48V-64V 18mos:voltage: 48V/60V/64V Rated power: 1000W Current: 45A

Case size: 218.54cm MOS tube: HY3412 , 18mosfet350W 48V-64V 6mos Line Diagram

1. Power cord2. Learning cord3. High-level brake4. Anti-theft power supply5. Low-level brake6. Hall line7. Turn handle line8. Cruise line9. Anti-theft alarm10. Three-speed transmission11. LCD instrument12. Motor line13. Motor line14. Motor line（500W 48V-64V 12mos 800W 48V-64V 15mos，1000W 48V-64V 18mos ）Line Diagram1. Electric door lock key line2. Power line positive line3. Power line negative line4. Reverse line5. LCD instrument line6. Three-speed transmission line7. Cruise line8. Cruise line9. Three-speed line of inching button10. Throttle line11. Motor Hall line12. Anti-theft alarm line13. High battery brake line14. Low battery brake line15. Learning line16. Learning line17. Hall pointer instrument line18. Motor line19. Motor line20. Motor lineNO.1Connect three motor wires.(the motor wires have no positive or negative poles and can be connected arbitrarily).Connect the three wires of the controller to the three wires of the electric vehicle motor,NO.2 The positive and negative poles of the power supply and the lock wire of the switch Please connect the power cord (thick red line for positive pole, thick black line for negative pole) and the switch lock wire (thin red line) of the controller to the positive and negative poles of the electric vehicle power supply and the switch lock wire respectively.NO.3Learning Line Firstly, please insert a pair of white learning wires of the controller together, then plug in the power key and turn on the power to observe whether the motor rotates:1. if the motor rotates forward, it indicates that learning has been completed, please unplug the learning wires,2. if the motor rotates in reverse, unplug the learning wire and reinsert it. Wait for the motor to rotate forward before unplugging the learning wire.NO.4Hall line This product has 5 connecting wires and one connector for the Hall wire.If there is a shaking sensation when connected to Hall, it indicates that this product can start without Hall;If the motor Hall (sensor)is damaged, it is recommended not to connect the Hall.NO.5Twist the thread Please connect the handle wire of this controller (red wire is the positive pole, black wire is the negative pole, and green wire is the signal wire) and the handle wire on the electric vehicle accordingly.After completing the above five steps, the electric vehicle can operate normally.Please install other required functions yourself.NO.6Fine purple high and low level brakes The controller has both a separate yellow line for high-level braking and a black and white line for low-level braking. High level braking and low-eve braking are distinguished by braking voltage. if the braking voltage exceeds 5v high-level braking is used. if the braking voltage is lower than 5v. use low-level braking. Both high and low levels have the effect of braking power failure.NO.7Instrument line The instrument cable is a separate thin green wire, suitable for pointer type instruments. if it is a LCD instrument. please choose carefully, as there may be mismatches.NO.8Patrol routes Cruise control is divided into automatic cruise control (cruise line insertion is sufficient) and button cruise controller (two buttons come out and are connected to the cruise line)NO.9Connected to three speed line The three speed line is blue brown black, with blue and black short circuits indicating high speed brown and black short circuits indicating low speed, and electric vehicles default to medium speed.NO.10Connected to anti-theft alarm function The anti-theft function line consists of two sets of wires: the anti-theft power supply and the anti-theft siqnal . Among them, the red and black line of the anti-theft power supply represent the positive ananegative poles of the battery, while the red line of the anti-the fsignal represents the lock wire of the switch, the yellow liner represents the wheel signal wire, and the blue line represents the anti-theft signal wire.NO.11Reverse function The reverse function is a closed circuit that can be replaced according to one's own needs. Short the r Windows black and gray lines of the reverse line to reverseNO.12LCD instrument
