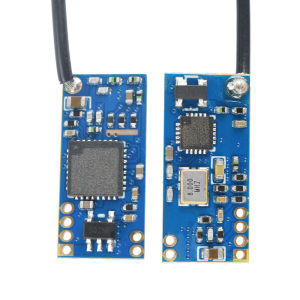

diymore DC 3.3-5.5V 2.4G 50MW TX2570 Transmitter Module Wireless Video Transmission Module 2370-2570MHz Support 8 Frequency Points

diymore. Parameter: DC Characteristics. Wide Voltage Operation: 3.3-5.5V. Low Power Consumption: 3.3V 85mA. Operating Environment. Operating Temperature: 10~70. Storage Temperature: 30~85. Operating Humidity: 85%RH. RF. Transmitting Frequency Range: 2370-2570MHz. Output VSWR: 2:1. Modulation Mode: 50, Typ. Intrinsic Oscillation Frequency Stability: ±100kHz. Intrinsic Oscillation Frequency Accuracy: ±200kHz. Local oscillation control: PLL. High Output Power: 17dBm. Video: Video Input Impedance: 75, Typ. Video Input Level: 1V(p-p), Typ. Video Polarity: Negative. Video Frequency Response: ±5dB, Max. 50Hz~6MHz. Product Size: 1782.6mm. Applications. 1. VCD/DVD/DVB/Video wireless transmission. 2. Baby monitoring. 3. Real-time on-site image monitoring. 4. Security transmission system. 5. PSP game to TV. 6. wireless visual reversing. Package include: Module*1. Parameter: DC Characteristics. Wide Voltage Operation: 3.3-5.5V. Low Power Consumption: 3.3V 85mA. Operating Environment. Operating T
