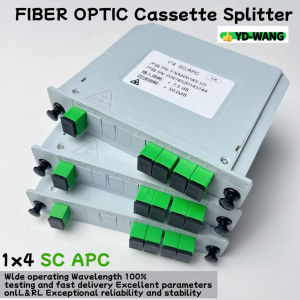

SC APC PLC 1X4 FTTH Fiber Optic Splitter 1X4 SC PLC Splitter Planar waveguide type Optical Coupler Splitter Big sale 1/3/5pcs

Product Description This series of optical splitters features excellent performance and is suitable for various optical communication scenarios. It has low insertion loss, low polarization-dependent loss (PDL), high return loss, uniform power splitting, a compact design, a wide operating wavelength range (1260–1650 nm), and an operating and storage temperature range of -40°C to 85°C. It also demonstrates superior environmental and mechanical stability and complies with Telcordia GR-1221 and GR-1209 standards. Available specifications include 1x4, 1x8, 1x16, 1x32, etc. The maximum insertion loss (S/P) is 7.4/7.2 dB, 10.7/10.5 dB, etc., respectively; the maximum loss uniformity is 0.6–1.7 dB; the minimum return loss (S/P) is 50/55 dB; the maximum PDL is 0.2–0.3 dB; and the minimum directivity is 55 dB. The pigtail length is 1.2 (±0.1) m or can be customized. The fiber type is SMF-28e or can be customized as needed. The wavelength-dependent loss is 0.2–0.3 dB, the temperature stability (-40–85°C) is 0.3–0.4 dB, and the package size (L x W x H) is 40x4x4 mm, providing a reliable solution for efficient and stable transmission in optical networks.
