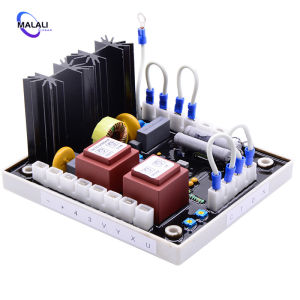

EA63-7D AVR Automatic Voltage Regulator Kutai Stabilizer for Diese Generator

EA63-7D AVR Automatic Voltage Regulator Kutai Stabilizer for Diese Generator Technical data SENSING INPUT voltage：180-277vac,three phase frequency：50-60 HZ nominal POWER INPUT voltage:180-260vac max output voltage:max63v at 220v ac input current :continuous 7A regulation:+/-1.0% Description Detect Input：voltage 220/440VAC 10% single phase Frequency： 50/60HZ with jumper settings Power input voltage： 180-260VAC single-phase two-wire Frequency： 50/60HZ Maximum output voltage： 63VDC Continuous current 7A, non-15A continuously for 15 seconds Minimum 6 ohm resistor 105 ohm maximum Voltage Regulation <1% change in engine speed <4% DROOP CT input： 5A The maximum sensitivity corresponding to 4% drop PF0.7 2A maximum input 5A Stability of each degree temperature difference changes, voltage drift of 0.05% When using an external voltage adjustment potentiometer 1K Ohms 1 Watt of 10% Voltage adjustment range of 180-277VAC @ 220V 360-554VAC @ 440V Built-in EMI filter EMI suppression Maximum power consumption 20Watt Turning point for the low-frequency protection 60HZ 45HZ 55HZ 50HZ turning point OVEREXCITATION automatically turn off automatically turns off the excitation voltage exceeds 65 2VDC by the delay after
