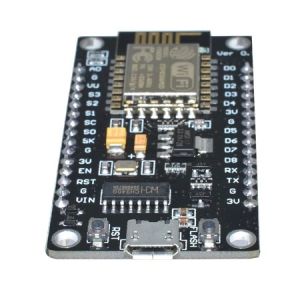

Pcbfun Nodemcu V3 Esp8266 Esp-12E Wi-Fi Networking Wireless Internet Development Board Module Ch340G

Introduction to Pcbfun Nodemcu V3 Esp8266 Development Board

The Pcbfun Nodemcu V3 Esp8266 development board is a versatile, compact, and cost-effective platform designed for developers and hobbyists interested in creating innovative IoT projects. This development board is built around the powerful ESP8266 Wi-Fi chip, which provides seamless connectivity to wireless networks.

Overview of the Development Board

The Pcbfun Nodemcu V3 Esp8266 development board is a popular choice among developers due to its rich set of features and ease of use. It offers a wide range of functionalities, including GPIO pins, ADC, UART, I2C, SPI, and PWM, making it suitable for various IoT applications.

Key Features of the Nodemcu V3 Esp8266 Board

Here are some of the key features of the Pcbfun Nodemcu V3 Esp8266 development board:

• ESP8266 Wi-Fi Chip: The heart of the board, providing reliable wireless connectivity.
• Ch340G USB Interface: Ensures smooth communication between the board and your computer.
• GPIO Pins: Offers multiple GPIO pins for interfacing with external devices and sensors.
• Built-in Flash Memory: Comes with 4MB of flash memory for storing code and data.
• Low Power Consumption: Designed to operate efficiently, minimizing power usage.

Setting Up Your ESP8266 IoT Development Kit

To get started with the Pcbfun Nodemcu V3 Esp8266 development board, you'll need to install the necessary software and drivers and connect the board to your computer.

Installing Necessary Software & Drivers

Before connecting the NodeMCU V3 board to your computer, make sure you have the required software and drivers installed. Here's what you'll need:

• Arduino IDE: Download and install the Arduino IDE from the official website.
• ESP8266 Board Support Package: Install the ESP8266 board support package in the Arduino IDE.
• Ch340G USB Driver: Install the Ch340G USB driver to enable communication between the board and your computer.

Connecting the NodeMCU V3 Board to Your Computer

Once you've installed the necessary software and drivers, connect the NodeMCU V3 board to your computer via a USB cable. The board should be recognized by your computer, and you'll be ready to start programming.

Exploring Wi-Fi Networking Capabilities with ESP-12E

The Pcbfun Nodemcu V3 Esp8266 development board features the ESP-12E Wi-Fi chip, which offers robust networking capabilities. In this section, we'll discuss how to configure Wi-Fi settings and create a simple Wi-Fi network using the ESP-12E board.

Configuring Wi-Fi Settings on the ESP-12E Board

To connect the ESP-12E board to a Wi-Fi network, you'll need to configure the Wi-Fi settings in your code. Here's an example of how to do this using the Arduino IDE:

#include <ESP8266WiFi.h>

const char* ssid = \"YourSSID\";
const char* password = \"YourPassword\";

void setup() {
  Serial.begin(115200);
  WiFi.begin(ssid, password);
}

Replace YourSSID and YourPassword with the actual SSID and password of your Wi-Fi network.

Creating a Simple Wi-Fi Network Using ESP-12E

You can also use the ESP-12E board to create a simple Wi-Fi network. Here's an example of how to do this using the Arduino IDE:

#include <ESP8266WiFi.h>

const char* ssid = \"MyNetwork\";
const char* password = \"MyPassword\";

void setup() {
  Serial.begin(115200);
  WiFi.softAP(ssid, password);
}

This code will create a Wi-Fi network named MyNetwork with the password MyPassword. Replace these values with your desired SSID and password.

Understanding Ch340G USB Interface

The Ch340G USB interface plays a crucial role in the Pcbfun Nodemcu V3 Esp8266 development board by enabling communication between the board and your computer. In this section, we'll discuss the role of the Ch340G USB interface and common issues you may encounter.

Role of Ch340G in the Nodemcu V3 Esp8266 Development Board

The Ch340G USB interface is responsible for converting serial data between the ESP8266 Wi-Fi chip and your computer. This allows you to program the board, monitor serial output, and debug your code.

Troubleshooting Common Issues with Ch340G USB Interface

If you're experiencing issues with the Ch340G USB interface, here are some troubleshooting steps you can try:

• Check USB Cable: Make sure you're using a good quality USB cable and that it's properly connected to both the board and your computer.
• Install Ch340G Driver: Ensure that the Ch340G USB driver is installed on your computer. If not, download and install it from the manufacturer's website.
• Check Power Supply: Verify that the board is receiving sufficient power from your computer or an external power source.

Conclusion & Next Steps

In conclusion, the Pcbfun Nodemcu V3 Esp8266 development board is a powerful tool for creating innovative IoT projects. With its robust Wi-Fi capabilities and easy-to-use Ch340G USB interface, you can quickly get started with your next project.

Recap of Key Points Covered

• The Pcbfun Nodemcu V3 Esp8266 development board is a versatile platform for IoT projects.
• The ESP8266 Wi-Fi chip provides reliable wireless connectivity.
• The Ch340G USB interface enables communication between the board and your computer.

Additional Resources for Further Learning

For more information on the Pcbfun Nodemcu V3 Esp8266 development board and its capabilities, refer to the following resources:

• Pcbfun Official Website: https://www.pcbfun.com
• ESP8266 Documentation: http://esp8266.github.io/Arduino/versions/2.4.0/doc/index.html
• Arduino IDE Documentation: https://www.arduino.cc/en/Guide/HomePage
