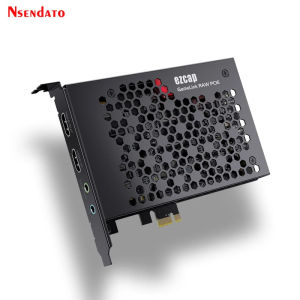

Ezcap380 GameLink RAW 4K 30fps 1080p120 HDMI PCIE Video Capture Card PCI-E HDMI Audio Video Grabber Recorder with Line in Out

Introduction to Ezcap380 GameLink HDMI Video Capture Card

The Ezcap380 GameLink RAW 4K 30fps 1080p120 HDMI PCIE Video Capture Card is a powerful and versatile device designed to capture and record high-quality video and audio content. This PCI-E audio video grabber is compatible with both Windows and Mac operating systems, making it a perfect choice for users who want to record gameplay, stream live content, or capture video for editing purposes.

Key Features

• RAW 4K 30fps Recorder: The Ezcap380 GameLink supports RAW 4K video recording at 30 frames per second, ensuring smooth and high-resolution playback.
• Line In Out Interface: This device features a line in/out interface, allowing users to connect external audio sources and output audio to speakers or headphones.
• PCI-E Audio Video Grabber: With its PCI-E Gen3 x1 interface, the Ezcap380 GameLink offers fast data transfer rates and low latency, making it ideal for real-time streaming and recording.
• 1080p120 Frame Rate: In addition to its RAW 4K capabilities, the Ezcap380 GameLink also supports 1080p video recording at 120 frames per second, providing smooth slow-motion playback.

Certification & Compliance

The Ezcap380 GameLink HDMI Video Capture Card meets various international safety and quality standards, including CE, FCC, and RoHS certifications. This ensures that users can trust the device to provide reliable performance and comply with global regulations.

Specifications Overview

| Interface | PCIe Gen3 x1 | | --- | --- | | Video Input/Output (Pass-Through) | HDMI1.4 enabled, 2160p30, 1440p60, 1080p120, 720p60 | | Audio Input | HDMI, Line In (3.5mm TRS, 3-pole) | | Audio Output | HDMI, Line Out (3.5mm TRS, 3-pole) | | Max Record Resolution | 3840x2160-30fps/MJPG/NV12/I420, 2560x1440-120fps/MJPG, 60fps/NV12/I420, 50fps/YUY2, 2560x1080-60fps/MJPG/NV12/I420/YUY2, 1920x1080-120fps/MJPG/NV12/I420, 60fps/YUY2/RGB24, 1280x720-60fps/MJPG/NV12/I420/YUY2/RGB24 |

Setting Up Ezcap380 GameLink HDMI Video Capture Card

System Requirements

To ensure optimal performance, users must meet the following system requirements:

• Windows 10/11 (64-bit)
• PCIe Gen3 x1 slot
• 6th generation Intel Core i7 CPU (i7-6XXX)/AMD Ryzen 7 (or better)
• NVIDIA GeForce GTX 10xx (or better)
• Mac: Mac Pro, Mac OS X High Sierra 10.15 and above, PCIe Gen3 x1 slot

Installation Process

1. Power off your computer and unplug it from the power source.
2. Open the computer case and locate an available PCIe Gen3 x1 slot.
3. Insert the Ezcap380 GameLink HDMI Video Capture Card into the slot and secure it using screws.
4. Connect the necessary cables, including HDMI input/output, audio input/output, and power supply.
5. Close the computer case and power on your system.
6. Install the driver software provided with the Ezcap380 GameLink package.

Connecting Audio & Video Sources

To connect audio and video sources to the Ezcap380 GameLink, follow these steps:

1. Connect the HDMI output of your video source (e.g., gaming console, Blu-ray player) to the HDMI input port on the Ezcap380 GameLink.
2. Connect the HDMI output of the Ezcap380 GameLink to your monitor or display device.
3. Connect external audio sources to the Line In port (3.5mm TRS, 3-pole) on the Ezcap380 GameLink.
4. Connect speakers or headphones to the Line Out port (3.5mm TRS, 3-pole) on the Ezcap380 GameLink.

Maximizing Performance with Ezcap380 GameLink HDMI Video Capture Card

Optimal Recording Settings

To achieve the best possible recording quality, consider the following settings:

• Set the desired resolution and frame rate according to your needs.
• Adjust the bitrate to balance file size and video quality.
• Enable hardware acceleration if supported by your graphics card.
• Choose the appropriate codec based on your intended use case (e.g., MJPG, NV12, I420).

Supported Formats & Resolutions

The Ezcap380 GameLink supports various video formats and resolutions, including:

• RAW 4K at 30fps
• 2560x1440 at 120fps
• 2560x1080 at 60fps
• 1920x1080 at 120fps
• 1280x720 at 60fps

Enhancing Video Quality

To further improve video quality, consider implementing the following tips:

• Adjust the exposure, contrast, and brightness settings on your video source.
• Use a high-quality microphone or external audio source for clear sound.
• Ensure your computer meets the minimum system requirements for optimal performance.

Troubleshooting Common Issues

Connectivity Problems

If you encounter connectivity issues, try the following solutions:

• Check all cable connections and ensure they are securely connected.
• Verify that the Ezcap380 GameLink is properly installed and recognized by your operating system.
• Update the driver software to the latest version.

Recording Quality Concerns

If you experience recording quality issues, consider the following solutions:

• Adjust the recording settings to find the optimal balance between file size and video quality.
• Check your computer's system requirements and ensure they meet the minimum specifications.
• Update your graphics card driver to the latest version.

Compatibility Issues

If you encounter compatibility issues, try the following solutions:

• Verify that your operating system is supported by the Ezcap380 GameLink.
• Check if there are any updates available for the Ezcap380 GameLink software.
• Contact the manufacturer's support team for assistance.
