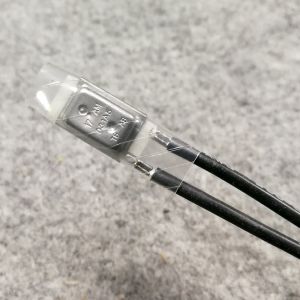

17AM Motor Thermal Protector: 250V 10A KSD Thermostat Switch

What is a 17AM Motor Thermal Protector?

The 17AM motor thermal protector is a device designed to protect electric motors from overheating by monitoring their temperature. This thermal protector is specifically rated at 250V and 10A, making it suitable for a wide range of applications. The KSD thermostat switch, which is an integral component of the thermal protector, is available in a normally closed (NC) configuration.

Key Features of the 17AM Motor Thermal Protector

• Voltage Rating: 250V
• Current Rating: 10A
• Temperature Range: 60°C to 180°C
• Thermostat Type: KSD
• Configuration: Normally Closed (NC)
• Model: 17AM

Temperature Control Options: NC & NO

Our temperature control switch offers two options: normally closed (NC) and normally open (NO). The NC configuration is the default setting for this product. If you require a normally open switch, please contact our online customer service.

Choosing the Right Temperature Range

The 17AM motor thermal protector is available in various temperature ranges, allowing you to select the most suitable option for your application. The available temperature ranges are 60°C, 65°C, 75°C, 85°C, 90°C, 95°C, 105°C, 125°C, 150°C, and 180°C.

Available Temperature Ranges: 60-180°C

The 17AM motor thermal protector offers a wide range of temperature settings, from 60°C to 180°C. This flexibility allows users to choose the most appropriate temperature range for their specific application.

Selecting the Correct Temperature Setting

To select the correct temperature setting for your application, consider the maximum operating temperature of your motor and the desired safety margin. For example, if your motor operates at a maximum temperature of 120°C, you may choose a thermal protector with a temperature setting of 125°C or higher to ensure adequate protection.

How to Install the KLIXON Thermostat Switch

Installing the KLIXON thermostat switch is a straightforward process. However, it is essential to follow the proper steps to ensure optimal performance and safety.

Preparation Before Installation

Before installing the KLIXON thermostat switch, make sure to:

• Read the manual: Familiarize yourself with the installation instructions and safety guidelines.
• Check the motor: Verify that the motor is compatible with the thermal protector and has sufficient space for installation.
• Prepare the tools: Gather the necessary tools, such as a screwdriver and wire strippers.

Step-by-Step Installation Guide

1. Mount the thermal protector: Secure the thermal protector to the motor using the provided mounting hardware.
2. Connect the wires: Connect the wires from the motor to the corresponding terminals on the thermal protector.
3. Test the installation: Power on the motor and monitor its operation to ensure the thermal protector is functioning correctly.

Maintaining Your Motor Thermal Protector

Regular maintenance is essential to ensure the proper functioning of your motor thermal protector. Follow these tips to keep your device in top condition:

Regular Maintenance Tips

• Inspect the thermal protector: Periodically check the thermal protector for signs of wear or damage.
• Clean the thermal protector: Remove any dirt or debris that may interfere with its operation.
• Test the thermal protector: Regularly test the thermal protector to ensure it is functioning correctly.

Troubleshooting Common Issues

If you encounter any issues with your motor thermal protector, refer to the troubleshooting guide below:

• Thermal protector does not trip: Check the temperature setting and verify that the thermal protector is properly installed.
• Thermal protector trips too frequently: Adjust the temperature setting or check for potential causes of overheating, such as insufficient ventilation or excessive load.
• Thermal protector does not reset: Allow the motor to cool down before attempting to reset the thermal protector.

By following these guidelines, you can ensure that your motor thermal protector remains in optimal condition and provides reliable protection for your electric motors." }
