PG3/8 V10-C3C VMI Solenoid Valve Coil: A Comprehensive Guide

Understanding the PG3/8 V10-C3C Solenoid Valve Coil

Key Features & Specifications

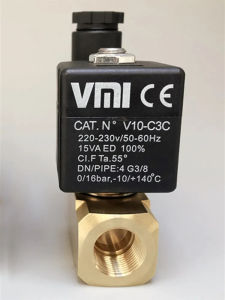

The PG3/8 V10-C3C VMI Solenoid Valve Coil is a reliable and efficient device designed to control fluid flow in various applications. Its specifications include:

• Brand Name: DUTY O YCLE
• Model Number: DTSC-266
• Origin: Mainland China
• Certification: CE
• Material: Plastic Brass
• Standard: AC220V, 230V
• Inner Diameter: 13mm
• Height: 38.5mm

These specifications make it suitable for a wide range of applications, from industrial processes to home automation systems.

Applications & Benefits

The PG3/8 V10-C3C Solenoid Valve Coil is ideal for controlling fluid flow in applications such as:

• Industrial automation systems
• HVAC systems
• Water treatment plants
• Food processing industries

The benefits of using this solenoid valve coil include:

• High efficiency and reliability
• Easy installation and maintenance
• Durable and corrosion-resistant materials
• Compliance with international standards

How to Install the PG3/8 V10-C3C Solenoid Valve Coil

Preparation & Tools Required

Before installing the PG3/8 V10-C3C Solenoid Valve Coil, ensure you have the following tools and materials:

• Screwdriver
• Wrench
• Electrical tape
• Wire stripper

Make sure to read the manufacturer's instructions carefully before beginning the installation process.

Step-by-Step Installation Process

Follow these steps to install the PG3/8 V10-C3C Solenoid Valve Coil:

1. Turn off the power supply to the system where the solenoid valve coil will be installed.
2. Remove the existing solenoid valve coil, if applicable.
3. Connect the new solenoid valve coil to the valve body using the provided mounting screws.
4. Strip the wires and connect them to the appropriate terminals on the solenoid valve coil.
5. Secure the connections with electrical tape and ensure they are not exposed to any potential hazards.
6. Turn on the power supply and test the solenoid valve coil to ensure proper operation.

Troubleshooting Common Issues with PG3/8 V10-C3C Solenoid Valve Coil

Identifying & Resolving Problems

Common issues with the PG3/8 V10-C3C Solenoid Valve Coil include:

• Leaking: Check the connections and seals for any damage or wear. Replace damaged parts as necessary.
• No Power: Verify that the power supply is functioning correctly and that the connections are secure.
• Inconsistent Operation: Inspect the wiring and connections for any loose or damaged components.

Maintenance Tips & Best Practices

To ensure the longevity and optimal performance of the PG3/8 V10-C3C Solenoid Valve Coil, follow these maintenance tips and best practices:

• Regularly inspect the connections and seals for any damage or wear.
• Clean the solenoid valve coil and surrounding components as needed.
• Follow the manufacturer's instructions for proper installation and maintenance.

By following these guidelines, you can maximize the efficiency and reliability of the PG3/8 V10-C3C Solenoid Valve Coil in your application.
