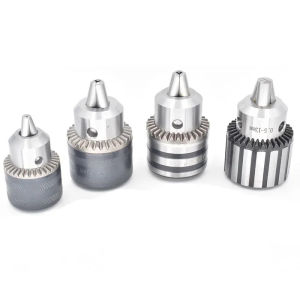

Understanding Heavy Drill Chuck B10 B12 B16 B18

Heavy drill chucks, such as the B10, B12, B16, and B18 models, are crucial components in various milling machines and CNC tool drills. These chucks are designed to securely hold drill bits, end mills, and other cutting tools during machining operations. In this article, we will explore the different aspects of heavy drill chucks, including their rotation clamping mechanism, applications, and proper installation and maintenance techniques.

Drill Chuck Rotation Clamping Explained

A drill chuck rotation clamping mechanism is responsible for securely holding cutting tools within the chuck. This is achieved by tightening the chuck's jaws around the tool shank, creating a secure grip that prevents slippage during machining operations. The B10, B12, B16, and B18 heavy drill chucks feature a taper hole design, which allows for precise alignment and easy tool changes.

Machine Chuck for CNC Tool Drill Overview

Machine chucks, like the heavy drill chucks mentioned above, play a vital role in CNC tool drills and milling machines. These chucks are specifically designed to accommodate various cutting tools and provide a secure grip during machining operations. The B10, B12, B16, and B18 heavy drill chucks are perfect examples of machine chucks tailored for CNC tool drills.

Choosing the Right Heavy Drill Chuck for Your Needs

Selecting the appropriate heavy drill chuck for your specific application is essential for achieving optimal performance and prolonging the life of your cutting tools. In this section, we will discuss the factors to consider when choosing a heavy drill chuck, including its taper hole diameter and model number.

Taper Hole Milling Machine Tool Application

The B10, B12, B16, and B18 heavy drill chucks feature different taper hole diameters, which determine their compatibility with various milling machine tools. The B10 model has a taper hole diameter of approximately 10mm, while the B12, B16, and B18 models have taper hole diameters of approximately 12mm, 15.8mm, and 17.7mm, respectively. It is crucial to select a heavy drill chuck with a taper hole diameter that matches the shank diameter of your cutting tools.

Selecting the Appropriate Model Number

Choosing the right heavy drill chuck model number depends on the size and type of cutting tools you plan to use. The B10, B12, B16, and B18 models are designed to accommodate different tool sizes and applications. For instance, the B10 model is ideal for smaller cutting tools, while the B18 model is better suited for larger tools.

Installation and Maintenance of Heavy Drill Chuck

Proper installation and regular maintenance of heavy drill chucks are essential for achieving optimal performance and extending their lifespan. In this section, we will discuss the techniques for installing and maintaining heavy drill chucks, including the B10, B12, B16, and B18 models.

Proper Installation Techniques

To install a heavy drill chuck, such as the B10, B12, B16, or B18 model, follow these steps:

1. Ensure that the milling machine or CNC tool drill is turned off and unplugged before installing the chuck.
2. Remove any existing chuck or tool from the spindle.
3. Align the taper hole of the heavy drill chuck with the spindle and gently press it onto the spindle.
4. Tighten the chuck's jaws around the tool shank using the included key.
5. Turn on the milling machine or CNC tool drill and perform a test run to ensure proper installation.

Regular Maintenance Tips

Regular maintenance of heavy drill chucks, like the B10, B12, B16, and B18 models, can help extend their lifespan and maintain optimal performance. Some maintenance tips include:

1. Clean the chuck regularly to remove debris and dirt.
2. Inspect the chuck's jaws for wear or damage and replace them if necessary.
3. Lubricate the chuck's moving parts to reduce friction and wear.
4. Store the chuck in a dry, clean environment when not in use.

Frequently Asked Questions about Heavy Drill Chuck B10 B12 B16 B18

In this section, we will address some common questions and concerns related to heavy drill chucks, including the B10, B12, B16, and B18 models.

Common Issues and Solutions

Some common issues associated with heavy drill chucks include loose tool grip, chuck wear, and damage to the taper hole. To address these issues, ensure proper installation, regularly inspect the chuck for wear or damage, and replace worn parts as needed.

Additional Tips for Optimal Performance

To achieve optimal performance from heavy drill chucks, such as the B10, B12, B16, and B18 models, follow these tips:

1. Select the appropriate model number based on the size and type of cutting tools you plan to use.
2. Install the chuck properly by aligning the taper hole with the spindle and tightening the jaws around the tool shank.
3. Regularly clean and maintain the chuck to reduce wear and prolong its lifespan.
4. Store the chuck in a dry, clean environment when not in use." }
