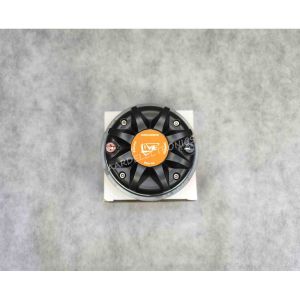

Shockwave Live Star 44: A 300-Watt Compression Driver Unit Tweeter

What is the Shockwave Live Star 44?

The Shockwave Live Star 44 is a high-performance compression driver unit tweeter, capable of delivering 300 watts of power. This tweeter is designed for professional audio speakers and is suitable for a wide range of applications, including live performances, recording studios, and home theaters.

Key Features

• High power handling: Capable of delivering up to 300 watts of power, making it ideal for high-volume applications.
• Wide frequency response: Offers a frequency range of 2 kHz to 20 kHz, ensuring clear and accurate sound reproduction.
• High sensitivity: With a sensitivity of 105 dB, this tweeter can produce loud and powerful sound without requiring excessive amplification.
• Compact size: Its compact design allows for easy installation in a variety of speaker cabinets and enclosures.

Technical Specifications

| Specification | Value | | --- | --- | | Power Handling | 300 Watts | | Frequency Response | 2 kHz - 20 kHz | | Sensitivity | 105 dB | | Impedance | 8 Ohms | | Mounting Diameter | 1.5 Inches |

How to Choose the Right Tweeter for Your Needs

When selecting a tweeter, it's essential to consider several factors to ensure you choose the right one for your specific application.

Understanding Tweeter Types

There are two main types of tweeters: dome tweeters and horn tweeters. Dome tweeters are typically made of lightweight materials such as silk, titanium, or aluminum, and are known for their smooth and accurate sound reproduction. Horn tweeters, on the other hand, are designed to deliver high SPL (sound pressure level) and are often used in live performances and outdoor events.

Evaluating Tweeter Performance

When evaluating tweeter performance, consider the following factors:

• Frequency response: A wider frequency range allows for better sound reproduction and clarity.
• Sensitivity: Higher sensitivity means the tweeter can produce louder sound without requiring excessive amplification.
• Power handling: A higher power rating indicates that the tweeter can handle more power, making it suitable for high-volume applications.

Setting Up & Using the Shockwave Live Star 44

To ensure optimal performance, follow these installation tips and sound optimization techniques.

Installation Tips

• Mounting: Ensure the tweeter is securely mounted in the speaker cabinet or enclosure.
• Crossover: Use a crossover network to filter out low frequencies and prevent damage to the tweeter.
• Amplification: Use a high-quality amplifier with sufficient power to drive the tweeter effectively.

Optimizing Sound Quality

• Equalization: Adjust the equalizer settings to balance the sound output and achieve the desired tonal quality.
• Placement: Position the tweeter in a location that minimizes interference from other sound sources and ensures optimal sound dispersion.
• Maintenance: Regularly clean and inspect the tweeter to prevent dust buildup and ensure proper operation.

Maintenance & Troubleshooting

To keep your Shockwave Live Star 44 in top condition, follow these cleaning and care tips and solutions for common issues.

Cleaning & Care

• Regular cleaning: Wipe the tweeter with a soft, lint-free cloth to remove dust and debris.
• Storage: Store the tweeter in a dry, cool location to prevent damage from moisture and extreme temperatures.
• Protection: Cover the tweeter when not in use to protect it from dust and other contaminants.

Common Issues & Solutions

• Distorted sound: Check the amplifier settings and ensure the tweeter is properly connected to the speaker cabinet.
• No sound: Verify that the tweeter is properly connected to the amplifier and that there are no loose connections.
• Squealing or whistling: Adjust the equalizer settings to reduce high-frequency distortion.

In conclusion, the Shockwave Live Star 44 is a high-performance compression driver unit tweeter that offers exceptional sound quality and durability. By understanding the key features, technical specifications, and installation tips, you can ensure optimal performance and longevity for your audio system.
