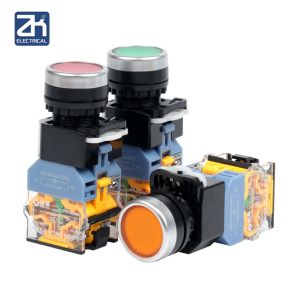

1pcs Led Momentary Push Button Switch Mayitr Ac 220v No+nc Start Stop Dpst Switches For Starter Contactor Relay

Product Overview

The 1pcs LED momentary push button switch from Mayitr is a versatile, reliable, and durable solution for controlling various electrical devices and circuits. This DPST switch is designed specifically for starters, contactors, relays, and other automatic control electric circuits. With a sleek black finish and a range of LED light colors, this switch is both functional and aesthetically pleasing.

Key Features

• Main Color: Black
• LED Light Colors: Yellow, Green, White, Red, Blue
• Mounting Type: Flush Mount
• Pole and Throw: DPST
• Operation Type: Non-Self Locking
• Lamp Type: Indent; Light
• Voltage: AC220V
• Current: 5A
• Mounting Size: Approx. 22mm

Specifications

• Switch Type: 1NO + 1NC Momentary Type
• Terminal Type: 4 Screw Terminals
• Thread Diameter: 22mm

Installation & Usage

How to Install

Installing the Mayitr LED momentary push button switch is a straightforward process. First, ensure that the power supply is disconnected. Next, mount the switch using the provided screws and flush mount design. Finally, connect the wires to the 4 screw terminals according to the circuit diagram.

How to Use

To operate the switch, simply press the button momentarily. This will activate the desired function, such as starting or stopping a motor, engaging or disengaging a contactor, or triggering a relay. The non-self-locking operation ensures that the switch returns to its original position after release, providing consistent performance.

Applications & Benefits

Control Electromagnetic Starter

The Mayitr LED momentary push button switch is ideal for controlling electromagnetic starters, which are used to initiate the operation of motors and other electrical devices. With its DPST configuration, the switch can handle both start and stop functions, ensuring reliable performance in various applications.

Control Contactor & Relay

In addition to starters, this switch can also control contactors and relays. Contactors are used to connect or disconnect large electrical loads, while relays are used to control the operation of other devices. The Mayitr LED momentary push button switch provides a reliable and efficient means of controlling these components, ensuring smooth and consistent operation.

Easy Installation & Durability

The flush mount design and 4 screw terminals make installation quick and easy, while the durable construction ensures long-lasting performance. The LED light indicator provides visual confirmation of the switch's status, enhancing safety and convenience.

Package Contents & Notes

What's Included

• 1 x Push Button Switch

Important Notes

• Measurement Tolerance: Please allow 1-5mm errors due to manual measurement.
• Color Variation: Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated the same.
