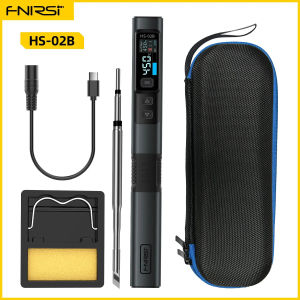

FNIRSI HS-02 100W PD Touch-up Station: A Comprehensive Guide

Introduction to the FNIRSI HS-02

The FNIRSI HS-02 Adjustable Temperature Soldering Iron DC 20V 100-450 ℃ 100W PD welding touch-up station is a versatile repair tool designed for professionals and hobbyists alike. With its adjustable temperature range, portable design, and Type-C interface, this device offers a convenient solution for various soldering tasks.

Key Features & Specifications

• Model Number: HS-02A/B
• Output Power: 100W
• Input Voltage: 9-20V
• Output Temperature Range: 100 °C - 450 °C (212-842 °F)
• Brand Name: FNIRSI
• Certification: CE, Weee
• Power Supplement: Type-C Interface
• Work Volting: 9-20V
• Flash Charging Protocol: PD/QC
• Temperature Range: 100-450 °C
• Screen: 0.96 IPS HD color screen
• Soldering Iron Tip-HS-02B: BS02B-I/IS/K
• Soldering Iron Tip-HS-02A: BS02A-I/JS/K/KU/B/C2
• Weight: About 61g

Target Audience & Applications

The FNIRSI HS-02 is suitable for a wide range of users, including electronics enthusiasts, hobbyists, and professionals who require a reliable and portable soldering station. This device is ideal for repairing electronic devices, assembling PCBs, and other soldering tasks.

How to Set Up Your FNIRSI HS-02

Setting up your FNIRSI HS-02 is straightforward and easy to follow. Here's a step-by-step guide to get you started:

Unboxing & Initial Setup

1. Carefully open the package and remove the FNIRSI HS-02 and its accessories.
2. Locate the Type-C interface and connect it to a compatible power source.
3. Turn on the device by pressing the power button.

Connecting the Soldering Iron Tip

1. Select the appropriate soldering iron tip for your task (HS-02A or HS-02B).
2. Insert the tip into the socket at the top of the device.
3. Tighten the tip by rotating it clockwise until secure.

Adjusting Temperature Settings

1. Press the temperature button to adjust the desired temperature within the range of 100-450 °C.
2. Monitor the temperature on the 0.96 IPS HD color screen.

Using Your FNIRSI HS-02 Welding Station

Once your FNIRSI HS-02 is set up, you can begin using it for various soldering tasks. Here's how:

Preparing for Soldering

1. Ensure the soldering iron tip is clean and free from debris.
2. Select the appropriate solder wire for your project.
3. Adjust the temperature settings according to your specific needs.

Proper Soldering Techniques

1. Hold the soldering iron at a 45-degree angle to the work surface.
2. Apply solder to the joint, allowing it to flow evenly.
3. Remove the soldering iron and allow the joint to cool before moving on to the next step.

Maintaining Your Device

To ensure optimal performance and longevity, follow these maintenance tips:

• Clean the soldering iron tip regularly using a damp sponge or brass wire brush.
• Store the device in a dry place away from direct sunlight.
• Replace the soldering iron tip if it becomes damaged or worn out.

Conclusion

The FNIRSI HS-02 Adjustable Temperature Soldering Iron DC 20V 100-450 ℃ 100W PD welding touch-up station is a reliable and versatile repair tool for professionals and hobbyists alike. With its adjustable temperature range, portable design, and Type-C interface, this device offers a convenient solution for various soldering tasks. By following the setup and maintenance instructions provided in this guide, you'll be able to make the most out of your FNIRSI HS-02 and enjoy a hassle-free soldering experience.
