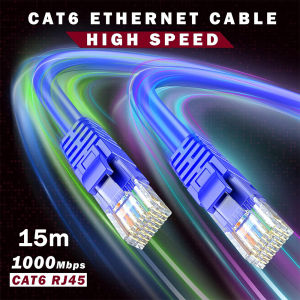

0.3m To 20m Ethernet Internet Rj-45 Cable Cat6 Lan Cord Network Router Cable Switch Cable

Ethernet LAN cables, commonly known as RJ-45 Cat6 cables, are essential components of wired networking infrastructure. They connect various devices like computers, routers, switches, and network-attached storage (NAS) systems, enabling seamless communication within local networks. This article aims to provide a comprehensive understanding of Ethernet LAN cables, their types, and the factors to consider when selecting cable length, installation, troubleshooting, and maintenance.

What Are Ethernet LAN Cables?

Ethernet LAN cables are twisted-pair copper wires encased in a protective sheath, used to transmit data between network devices. These cables come in different types, such as Cat5e, Cat6, and Cat6a, with varying capabilities and performance levels. Among these, Cat6 cables offer superior speed, reliability, and reduced interference, making them a popular choice for modern networking setups.

Ethernet LAN Cable Types

• Cat5e: Offers speeds up to 1 Gbps at a maximum length of 100 meters.
• Cat6: Supports speeds up to 10 Gbps at a maximum length of 55 meters.
• Cat6a: Provides speeds up to 10 Gbps at a maximum length of 100 meters.

Key Features of Ethernet LAN Cables

• Twisted-pair design: Reduces crosstalk and interference between wires.
• Shielded or unshielded: Shielded cables provide better protection against electromagnetic interference.
• Color-coded connectors: RJ-45 connectors come in various colors, making it easier to identify cable types and purposes.

Choosing the Right Length for Your Needs

Selecting the appropriate length of Ethernet LAN cables depends on several factors, including the distance between devices, the type of network setup, and the desired performance level. The available cable lengths range from 0.3 meters to 20 meters, catering to various networking requirements.

Factors to Consider When Selecting Cable Length

• Distance between devices: Ensure the chosen cable length can accommodate the distance between connected devices without compromising signal quality.
• Network setup: Consider the layout of your network infrastructure, including the placement of routers, switches, and other devices.
• Performance requirements: Longer cables may result in reduced performance due to signal degradation; choose a shorter length if higher speeds are necessary.

Cable Length Options: From 0.3m to 20m

• 0.3m to 1m: Ideal for short-distance connections, such as between a computer and a router.
• 2m to 5m: Suitable for medium-length connections, like between a switch and a NAS system.
• 10m to 20m: Appropriate for longer connections, such as between a router and a switch.

How to Install Ethernet LAN Cables

Installing Ethernet LAN cables requires specific tools and a step-by-step approach. By following these guidelines, you can ensure a successful installation and optimal network performance.

Tools Needed for Installation

• Crimping tool: Used to attach RJ-45 connectors to the ends of Ethernet cables.
• Wire strippers: For removing the outer sheath of the cable and exposing the individual wires.
• Network tester: Verifies the functionality of installed cables.

Step-by-Step Guide to Installing RJ-45 Cables

1. Measure and cut the cable to the desired length.
2. Strip the outer sheath of the cable, exposing the individual wires.
3. Arrange the wires according to the desired wiring standard (e.g., T568A or T568B).
4. Insert the wires into the RJ-45 connector and crimp them using the crimping tool.
5. Repeat steps 2-4 for the other end of the cable.
6. Test the cable using a network tester to ensure proper connectivity.

Troubleshooting Common Issues

Despite careful installation, Ethernet LAN cables may experience connection problems due to various factors, such as damaged cables, loose connections, or interference. Identifying and resolving these issues is crucial for maintaining optimal network performance.

Identifying Connection Problems

• Slow internet speed: May indicate a damaged cable or loose connection.
• Intermittent connectivity: Could be caused by electromagnetic interference or poor cable quality.
• No internet connection: May result from a disconnected cable or malfunctioning network device.

Resolving Network Connectivity Issues

• Check cable connections: Ensure all cables are securely connected to devices.
• Inspect cables for damage: Replace any damaged or frayed cables.
• Test cables using a network tester: Identify faulty cables and replace them if necessary.

Maintaining Your Ethernet LAN Cables

To ensure the longevity and optimal performance of your Ethernet LAN cables, it is essential to follow best practices for cable care and maintenance.

Best Practices for Cable Care

• Avoid bending cables excessively: Excessive bending can damage the internal wires and affect signal quality.
• Keep cables organized: Use cable ties or clips to manage cable clutter and prevent tangling.
• Protect cables from environmental factors: Store cables in a cool, dry place away from direct sunlight and moisture.

Extending the Lifespan of Your Network Cables

• Regularly inspect cables for damage: Replace any damaged or worn-out cables to maintain optimal network performance.
• Use surge protectors: Protect network devices from power surges that can damage connected cables.
• Keep software and firmware up-to-date: Regularly update the firmware of network devices to ensure compatibility with Ethernet LAN cables.
