Introduction to Optical Power Meter

Introduction to Optical Power Meter

Optical power meters are essential tools used in fiber optic networks to measure the strength of light signals transmitted through optical fibers. This article will focus on the high-precision optical power meter and fiber optic detection kit, which includes a visual fault locator (B3S model) and optional accessories like the LC adapter.

Understanding Standard Wavelengths

The standard wavelengths supported by this optical power meter include 850 nm, 980 nm, 1270 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1577 nm, and 1625 nm. These wavelengths are commonly used in fiber optic communication systems, and the ability to measure them accurately is crucial for ensuring optimal network performance.

Measuring Range & Detector Type

The measuring range of this optical power meter is -70 dBm to 6 dBm, -70 dBm to 10 dBm, and -50 dBm to 26 dBm, depending on the specific wavelength being measured. The detector type used in this device is InGaAs, which provides high sensitivity and accuracy across the supported wavelength range.

Display Resolution & Frequency Identification

The display resolution of this optical power meter is 0.1% linear and 0.01 dBm logarithmic. This level of precision allows users to make accurate measurements and identify potential issues within their fiber optic networks. Additionally, the frequency identification feature supports 270 Hz, 1000 Hz, and 2000 Hz, enabling users to test various types of optical signals.

Visual Fault Locator - B3S Model

The visual fault locator (B3S model) included in this kit is a valuable tool for identifying faults in fiber optic cables. It features several key specifications that make it an excellent choice for troubleshooting and maintenance tasks.

Key Features & Specifications

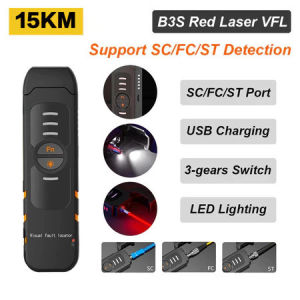

The B3S model has a power output of 15 MW/KM/MW and a battery capacity of 1800 mAh. Its interface type is a 2.5 mm unvertal interface, and it supports a wavelength output of 650 nm. The device weighs only 83 grams and measures 125 x 35 x 17 mm, making it easy to carry and use in various environments.

Compatibility with SC/FC/ST Adapters

This visual fault locator is compatible with SC, FC, and ST adapters, allowing users to connect it to different types of fiber optic connectors. This versatility makes it a valuable tool for technicians working with various fiber optic systems.

Using Fiber Optic Detection Kit

Using the fiber optic detection kit effectively requires following a step-by-step guide and being aware of common issues that may arise during testing.

Step-by-Step Guide

1. Connect the optical power meter to the fiber optic cable using the appropriate adapter (SC, FC, or ST).
2. Set the wavelength and measuring range according to the specific requirements of the network being tested.
3. Turn on the visual fault locator and connect it to the fiber optic cable using the appropriate adapter.
4. Observe the display of the optical power meter to determine the strength of the light signal.
5. If necessary, troubleshoot any issues by identifying faults using the visual fault locator.

Troubleshooting Common Issues

Some common issues that may arise during testing include signal loss, connector contamination, and cable damage. To address these issues, users should ensure that connectors are clean and properly seated, inspect cables for any visible damage, and use the visual fault locator to identify potential faults within the network.

Maintenance Tips & Best Practices

To maintain the accuracy and longevity of the optical power meter and visual fault locator, users should follow these best practices:

• Store the devices in a clean, dry environment away from extreme temperatures and humidity.
• Regularly calibrate the optical power meter to ensure accurate measurements.
• Clean connectors and adapters before and after use to prevent contamination.
• Follow manufacturer guidelines for battery maintenance and replacement.

Conclusion

In summary, the high-precision optical power meter and fiber optic detection kit are valuable tools for testing and maintaining fiber optic networks. By understanding the standard wavelengths, measuring range, and detector type supported by the optical power meter, users can make accurate measurements and identify potential issues within their networks. The visual fault locator included in this kit provides an additional layer of troubleshooting capability, making it an essential tool for technicians working with fiber optic systems.

Final thoughts and recommendations: Investing in a high-quality optical power meter and fiber optic detection kit is crucial for ensuring optimal network performance and minimizing downtime due to faults or issues within the system. The combination of the optical power meter and visual fault locator included in this kit provides users with the tools they need to effectively test and maintain their fiber optic networks.
