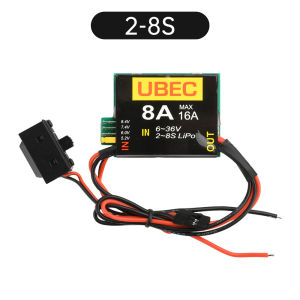

diymore 2S-8S 6-36V UBEC-8A BEC and Dual UBEC 8A/16A Output 5.2/7.4V/8.4V Adjustable Servo Standalone Power Supply RC Automotive Fixed Wing Aircraft Robot Arm

Introduction to diymore UBEC & Adjustable Servo Power Supply

The diymore 2S-8S 6-36V UBEC-8A BEC and Dual UBEC 8A/16A Output 5.2/7.4V/8.4V Adjustable Servo Standalone Power Supply is a versatile and reliable power supply solution designed specifically for RC enthusiasts, fixed-wing aircraft operators, and robot arm users. This high-efficiency DC-DC voltage regulator chip-based power supply offers several features that make it stand out from the competition.

Key Features & Benefits

• High-efficiency DC-DC voltage regulator chip: With a conversion efficiency of over 90%, this power supply ensures minimal energy loss during operation.
• Four optional output voltages: To meet various voltage specifications of aircraft model equipment, the diymore UBEC offers four adjustable output voltages: 5.2V, 7.4V, 8.4V, and a fixed 12V output for camera, video transmitter, and gimbal equipment.
• Dual parallel output: The UBEC-8A dual parallel output can carry more current, making it suitable for demanding applications.
• Overcurrent protection, output short circuit protection, overheating protection: These safety features ensure that the power supply operates reliably and safely.
• Working status indicator: A built-in indicator lights up when the UBEC is working properly, providing users with peace of mind.

How to Choose the Right UBEC & Adjustable Servo Power Supply

When selecting a UBEC and adjustable servo power supply, consider the following factors:

• Voltage range: Ensure that the power supply covers the required voltage range for your RC aircraft or robot arm.
• Current capacity: Select a power supply with sufficient current capacity to handle the load of your equipment.
• Safety features: Look for a power supply with overcurrent protection, output short circuit protection, and overheating protection to ensure safe operation.
• Working status indicator: A working status indicator provides users with visual confirmation that the power supply is functioning correctly.

How to Install & Set Up the diymore UBEC & Adjustable Servo Power Supply

Connecting the UBEC & Adjustable Servo Power Supply to Your RC Aircraft

To connect the diymore UBEC and adjustable servo power supply to your RC aircraft, follow these steps:

1. Identify the appropriate input voltage for your aircraft.
2. Connect the power supply to the battery using the provided connector.
3. Connect the output wires to the servos, camera, video transmitter, and gimbal equipment as needed.

Configuring Output Voltage Settings

To configure the output voltage settings, follow these steps:

1. Set the desired output voltage using the provided adjustment potentiometer.
2. Verify the output voltage using a multimeter to ensure accurate voltage regulation.

Optimizing Performance & Safety

Overcurrent Protection & Output Short Circuit Protection

The diymore UBEC and adjustable servo power supply includes overcurrent protection and output short circuit protection features to prevent damage to your equipment. These safety mechanisms automatically disconnect the power supply when an overcurrent or short circuit condition is detected.

Overheating Protection & Working Status Indicator

The diymore UBEC and adjustable servo power supply includes overheating protection to prevent damage due to excessive heat. When the power supply reaches a critical temperature, it automatically shuts down to prevent further damage. Additionally, the built-in working status indicator lights up when the UBEC is operating correctly, providing users with peace of mind.

Troubleshooting Common Issues

Solving Connection Problems

If you experience connection problems, check the following:

• Ensure that all connections are secure and properly seated.
• Verify that the input voltage is within the acceptable range.
• Check the output wires for any damage or wear.

Addressing Voltage Regulation Issues

If you experience voltage regulation issues, check the following:

• Verify that the output voltage settings are correct using a multimeter.
• Ensure that the power supply is properly connected to the battery and equipment.
• Check the input voltage to ensure it is within the acceptable range." }
