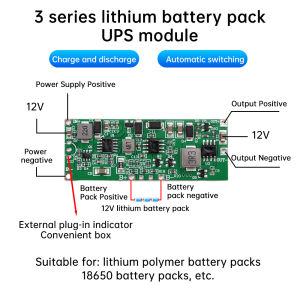

DC 12V 3A UPS Uninterruptible Power Board 3S Lithium Battery Pack Module Automatically Switches Between Charging And Discharging

Understanding the DC 12V UPS Module

The DC 12V 3A UPS module is a compact and reliable solution for providing uninterrupted power supply to your devices. It consists of a 3S lithium battery pack and an automatically switching power board, which work together to seamlessly switch between charging and discharging modes. This article will guide you through the key features, setup, and maintenance of this module.

Key Features of the 3S Lithium Battery Pack

The 3S lithium battery pack is the heart of the DC 12V UPS module. It offers several advantages over traditional lead-acid batteries:

• Higher energy density: Lithium batteries store more energy per unit volume compared to lead-acid batteries, allowing for smaller and lighter designs.
• Longer lifespan: Lithium batteries have a higher cycle life, meaning they can be charged and discharged more times before losing capacity.
• Faster charging: Lithium batteries can be charged at a higher rate, reducing downtime during recharging.

How the Automatically Switching Power Board Works

The automatically switching power board is responsible for managing the power flow between the battery pack and the connected devices. It has two main functions:

• Charging mode: When the input voltage is above a certain threshold, the power board charges the lithium battery pack using the available power source.
• Discharging mode: When the input voltage drops below a certain threshold, the power board switches to discharging mode, providing power to the connected devices from the battery pack.

The power board also includes several safety features, such as overcharge protection, overdischarge protection, and short-circuit protection, to ensure safe and reliable operation.

Setting Up Your DC 12V UPS System

Setting up your DC 12V UPS system is a straightforward process. Follow these steps to install the 3A lithium battery pack and connect the uninterruptible power supply:

Installing the 3A Lithium Battery Pack

1. Ensure the input voltage is within the specified range (typically 12V DC).
2. Connect the positive terminal of the battery pack to the positive terminal of the input voltage source.
3. Connect the negative terminal of the battery pack to the negative terminal of the input voltage source.
4. Secure the connections using appropriate connectors or terminals.

Connecting the Uninterruptible Power Supply

1. Connect the positive terminal of the uninterruptible power supply to the positive terminal of the battery pack.
2. Connect the negative terminal of the uninterruptible power supply to the negative terminal of the battery pack.
3. Secure the connections using appropriate connectors or terminals.

Maintaining Your DC 12V UPS System

Regular maintenance is essential to ensure the long-term reliability of your DC 12V UPS system. Follow these guidelines to maintain the health of your battery pack and troubleshoot common issues:

Regularly Checking the Battery Health

Monitor the battery health by checking the voltage levels during charging and discharging. A healthy battery should charge to a voltage close to its nominal value (e.g., 12.6V for a 12V battery) and discharge to a voltage above the minimum threshold (e.g., 10.8V for a 12V battery). If the battery does not reach these levels, it may be time to replace it.

Troubleshooting Common Issues

If you encounter issues with your DC 12V UPS system, refer to the troubleshooting guide below:

• Battery not charging: Check the input voltage and ensure it is within the specified range. Verify that the connections between the battery pack and the input voltage source are secure.
• Battery not discharging: Check the input voltage and ensure it has dropped below the threshold for discharging. Verify that the connections between the battery pack and the uninterruptible power supply are secure.
• Battery overcharging or overdischarging: Check the settings on the power board and adjust them if necessary. If the issue persists, consult the manufacturer's support for further assistance.

By following these guidelines, you can ensure the long-term reliability and performance of your DC 12V UPS system.
