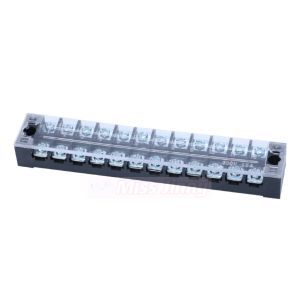

Dual Row Strip Screw Terminal Block 25A 600V Fixed Wiring Board wire connector TB2512

Introduction to Dual Row Strip Screw Terminal Block TB2512

A dual row strip screw terminal block, such as the TB2512, is a type of high-performance electrical connector used in various industrial applications. This article will provide a comprehensive overview of the TB2512, including its features, applications, durability, installation, and maintenance.

What is a Dual Row Strip Screw Terminal Block?

A dual row strip screw terminal block is a versatile electrical connector designed to connect multiple wires together in a secure and efficient manner. It consists of two rows of terminals, allowing for easy connection and disconnection of wires. The TB2512 is specifically designed to handle currents up to 25A and voltages up to 600V, making it suitable for a wide range of applications.

Key Features of the TB2512

The TB2512 offers several key features that make it an ideal choice for high-performance electrical connections:

• High current and voltage ratings: Capable of handling currents up to 25A and voltages up to 600V
• Dual row design: Allows for easy connection and disconnection of multiple wires
• Strip screw terminals: Securely hold wires in place, reducing the risk of accidental disconnections
• Durable construction: Made from high-quality materials that can withstand harsh environmental conditions

Applications of High-Performance Electrical Connector

The dual row strip screw terminal block TB2512 is widely used in various industrial applications due to its high performance and reliability.

How to Use Dual Row Strip Screw Terminal Block TB2512

Using the TB2512 is simple and straightforward. First, strip the insulation from the end of the wire, then insert the bare wire into the terminal block. Tighten the screw to secure the wire in place. Repeat this process for each wire that needs to be connected.

Benefits of Using TB2512

There are several benefits to using the TB2512:

• Reliable connections: The strip screw terminals provide a secure hold on the wires, reducing the risk of accidental disconnections
• Easy installation: The dual row design allows for quick and easy connection and disconnection of wires
• Wide range of applications: Suitable for a variety of industrial applications, including power distribution, control systems, and automation equipment

Durable Strip Terminal Block: TB2512's Durability and Reliability

The TB2512 is designed to withstand harsh environmental conditions, making it a reliable choice for industrial applications.

TB2512's Material and Construction

The TB2512 is made from high-quality materials that can withstand extreme temperatures, humidity, and other environmental factors. It is also designed to resist corrosion, ensuring long-lasting performance.

TB2512's Resistance to Environmental Factors

The TB2512 is resistant to a wide range of environmental factors, including:

• Temperature extremes: Can operate in temperatures ranging from -40°C to +85°C
• Humidity: Resistant to moisture and condensation
• Corrosion: Designed to resist corrosion caused by exposure to chemicals and other corrosive substances

Installation and Maintenance of Dual Row Strip Screw Terminal Block TB2512

Proper installation and maintenance are essential to ensure the TB2512 continues to perform reliably over time.

Steps to Install TB2512

To install the TB2512, follow these steps:

1. Identify the location where the terminal block will be installed
2. Strip the insulation from the end of the wire
3. Insert the bare wire into the terminal block
4. Tighten the screw to secure the wire in place
5. Repeat steps 2-4 for each wire that needs to be connected

Maintenance Tips for TB2512

To ensure the TB2512 continues to perform reliably over time, follow these maintenance tips:

• Regular inspections: Inspect the terminal block regularly for signs of wear or damage
• Cleaning: Clean the terminal block periodically to remove dust and debris
• Tightening screws: Check the tightness of the screws holding the wires in place and tighten as needed

In conclusion, the dual row strip screw terminal block TB2512 is a reliable and durable electrical connector that offers several key features and benefits. Its high current and voltage ratings, dual row design, and strip screw terminals make it an ideal choice for a wide range of industrial applications. By following proper installation and maintenance procedures, the TB2512 can provide long-lasting performance and reliability. " }
