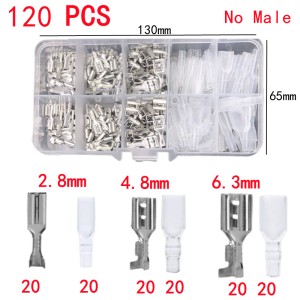

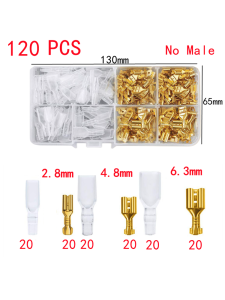

120pcs Box-Packed Gold/Silver Crimp Terminal Female 2.8/4.8/6.3mm Electrical Terminals

What Are Gold/Silver Crimp Terminals?

Gold/silver crimp terminals are electrical connectors used in various electronic projects to join wires securely and efficiently. They are typically made from gold or silver-plated metals, offering excellent conductivity and corrosion resistance. These terminals come in different sizes, such as 2.8mm, 4.8mm, and 6.3mm, making them suitable for a wide range of applications.

Key Features & Benefits

• High conductivity: Gold/silver crimp terminals provide excellent electrical conductivity, ensuring reliable connections in your projects.
• Corrosion resistance: The gold/silver plating protects the terminals from corrosion, extending their lifespan and maintaining optimal performance.
• Versatility: Available in various sizes, these terminals can be used in different electronic projects, including automotive, marine, and industrial applications.

Applications

Gold/silver crimp terminals are widely used in various industries, including:

• Automotive: In wiring harnesses, sensors, and control systems.
• Marine: For boat electrical systems, lighting, and navigation equipment.
• Industrial: In machinery, robotics, and automation systems.
• Electronics: In consumer electronics, such as smartphones, laptops, and gaming consoles.

How to Choose the Right Crimp Terminal Size

Selecting the appropriate crimp terminal size is crucial for ensuring a secure connection and preventing potential issues in your project. To choose the right size, consider the wire gauge and terminal compatibility.

Understanding Wire Gauge & Terminal Compatibility

Wire gauge refers to the thickness of the wire, which determines its current-carrying capacity. It's essential to match the wire gauge with the appropriate crimp terminal size to ensure a secure connection. Here's a general guideline for wire gauge and terminal compatibility:

| Wire Gauge | Terminal Size | |------------|---------------| | 22-28 | 2.8mm | | 18-22 | 4.8mm | | 14-18 | 6.3mm |

Matching Crimp Terminal Size to Your Project

Before starting your project, determine the wire gauge you'll be working with and select the corresponding crimp terminal size. This will help you avoid potential issues, such as loose connections or overheating, which could lead to system failures or even fires.

How to Use 120pcs Box-Packed Crimp Terminals

Using 120pcs box-packed gold/silver crimp terminals is a straightforward process. Follow these steps to prepare the wire and crimp terminal, crimp the connection, and test/troubleshoot the result.

Preparing the Wire & Crimp Terminal

1. Strip the insulation from the wire end, exposing approximately 1/4 inch of bare wire.
2. Insert the exposed wire into the crimp terminal, ensuring it's securely seated.

Crimping Techniques & Tips

1. Use a crimping tool to apply pressure evenly around the terminal, securing the wire in place.
2. Inspect the crimped connection to ensure it's tight and secure. If necessary, re-crimp the terminal to improve the connection.

Testing & Troubleshooting

After crimping the terminals, test the connections to ensure they're functioning correctly. If you encounter any issues, troubleshoot the problem by checking the wire gauge, terminal compatibility, and crimping technique.

Why Female Crimp Terminals Matter

Female crimp terminals play a vital role in many electronic projects, offering several advantages over male connectors.

Advantages Over Male Connectors

• Increased safety: Female terminals provide a more secure connection, reducing the risk of accidental disconnection or exposure to live wires.
• Better organization: Female terminals allow for a cleaner, more organized wiring setup, making it easier to manage complex projects.
• Enhanced reliability: Female terminals offer a more robust connection, minimizing the risk of loose connections or intermittent failures.

Applications in Electronics Projects

Female crimp terminals are widely used in various electronic projects, including:

• Automotive: In wiring harnesses, sensors, and control systems.
• Marine: For boat electrical systems, lighting, and navigation equipment.
• Industrial: In machinery, robotics, and automation systems.
• Electronics: In consumer electronics, such as smartphones, laptops, and gaming consoles.

In conclusion, gold/silver crimp terminals, particularly female terminals, are essential components in many electronic projects. By understanding their features, benefits, and applications, you can make informed decisions about selecting the right terminal size and using them effectively in your projects.
