Wireless Microphone System Dual Antenna: A Comprehensive Guide

What is a Wireless Microphone System Dual Antenna?

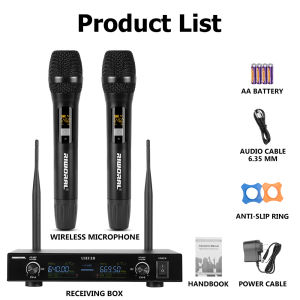

A wireless microphone system dual antenna is a sophisticated audio device designed for stage performances, KTV venues, and other live events. It consists of a transmitter (microphone) and a receiver that communicate wirelessly through radio frequencies. The dual antenna feature enhances signal stability and range, providing clear audio transmission even in challenging environments.

Key Features & Specifications

The wireless microphone system dual antenna boasts impressive technical specifications:

• Voltage: 110-240V 50~60Hz
• Frequency range: 600MHz
• Oscillation mode: PLL frequency synthesis
• Frequency stability: ±80ppm
• Receiving method: superheterodyne secondary frequency conversion
• Receiving sensitivity: -60dbm
• Audio Frequency Response: 3 ~ 20000 Hz
• Harmonic distortion: <0.7%
• Signal-to-noise ratio: >100dB
• Audio output: balanced output and unbalanced output
• Transmission power: 1～30MW
• Modulation method: frequency modulation (FM)
• Battery specification: 2 AAA batteries
• Weight: 1.4kg

Voltage & Power Supply

The wireless microphone system dual antenna operates on a voltage range of 110-240V at a frequency of 50~60Hz. This makes it compatible with various power sources, ensuring easy setup and operation in different environments.

How to Use a Wireless Microphone System Dual Antenna

Using a wireless microphone system dual antenna is straightforward and requires minimal technical expertise. Follow these steps to set up and adjust the microphone settings:

Setting Up the Microphone System

1. Connect the receiver to a power source within the specified voltage range.
2. Place the receiver in a central location to ensure optimal signal reception.
3. Install the microphone batteries (2 AAA) and connect the transmitter to the microphone.
4. Turn on both the receiver and transmitter.

Adjusting the Microphone Settings

Once the system is set up, fine-tune the settings according to your requirements:

• Frequency: Select a frequency within the 600MHz range to avoid interference with other wireless devices.
• Audio output: Choose between balanced and unbalanced output based on your audio equipment.
• Transmission power: Adjust the transmission power (1～30MW) to balance signal strength and battery life.

Benefits of Using a Wireless Microphone System Dual Antenna

The wireless microphone system dual antenna offers several advantages over traditional wired microphones:

Improved Sound Quality & Range

The dual antenna design enhances signal stability and range, providing clear audio transmission even in challenging environments. With a receiving distance work range of 100m/328ft, this microphone system is perfect for stage performances, KTV venues, and other live events.

Enhanced Performance & Reliability

The wireless microphone system dual antenna boasts impressive technical specifications, including a frequency range of 600MHz, receiving sensitivity of -60dbm, and a signal-to-noise ratio of >100dB. These features ensure reliable performance and excellent sound quality.

Frequently Asked Questions About Wireless Microphone System Dual Antenna

What is the Receiving Distance Work Range?

The receiving distance work range for this wireless microphone system dual antenna is 100m/328ft. This allows for clear audio transmission in large venues, making it ideal for stage performances and KTV events.

What is the Audio Output Capability?

The wireless microphone system dual antenna supports both balanced and unbalanced audio output, providing compatibility with a wide range of audio equipment. The audio frequency response is 3 ~ 20000 Hz, ensuring high-fidelity sound reproduction.
