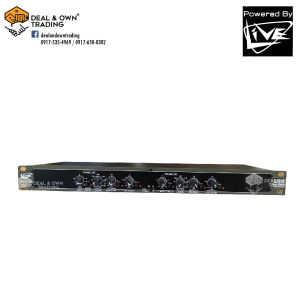

Live 223XL 2 Way Stereo / 3 Way Mono Crossover

Introduction to the Live 223XL

Overview of the Live 223XL Crossover

Introducing the Live 223XL, a high-performance crossover designed specifically for professional audio applications. This advanced crossover features both stereo 2-way and mono 3-way operation modes, making it a versatile choice for sound engineers and live audio professionals. The Live 223XL is built with premium components, ensuring exceptional performance and reliability in demanding environments.

Key Features of the Live 223XL Crossover

The Live 223XL offers a range of cutting-edge features, including:

• XLR balanced inputs and outputs
• Mode switch for stereo 2-way or mono 3-way operation
• Low frequency summed (subwoofer) output
• x10 range switch on both channels
• 40Hz high pass (low cut) filter on both channels
• Phase reverse switch on all outputs
• Individual level controls on all outputs
• 24dB per filters
• Stereo/Mono status LEDs indicating the selected mode

How to Use the Live 223XL

Stereo 2-Way Mode

In stereo 2-way mode, the Live 223XL splits the audio signal into two frequency bands, allowing for precise control over high and low frequencies. This mode is ideal for stereo systems and applications requiring separate left and right channels.

Mono 3-Way Mode

In mono 3-way mode, the Live 223XL splits the audio signal into three frequency bands, providing even greater control over the sound. This mode is perfect for mono systems and applications requiring multiple subwoofers or satellite speakers.

Low Frequency Summed Output

The low frequency summed output allows users to easily connect a subwoofer to the Live 223XL, ensuring optimal bass response and clarity. This feature is particularly useful in live audio settings where powerful, well-defined low frequencies are essential.

Enhancing Performance with the Live 223XL

XLR Balanced Inputs & Outputs

The Live 223XL features high-quality XLR balanced inputs and outputs, ensuring minimal signal loss and noise-free performance. These connections provide reliable and secure audio transmission, even over long distances.

x10 Range Switch on Both Channels

The x10 range switch on both channels allows users to adjust the crossover point, providing greater flexibility and customization options. This feature enables sound engineers to fine-tune the crossover settings according to specific application requirements.

Phase Reverse Switch on All Outputs

The phase reverse switch on all outputs helps eliminate phase issues, ensuring a cohesive and accurate sound. This feature is particularly useful in live audio settings where multiple speakers may be used, and precise phase alignment is crucial.

Live 223XL Warranty & Support

12 Months Service Warranty

The Live 223XL comes with a 12-month service warranty, providing peace of mind for users. Should any issues arise during the warranty period, customers can contact the manufacturer for support and assistance.
