G7 Optical Power Meter: High Precision & Portable Optical Measurement Tool

Introduction to G7 Optical Power Meter

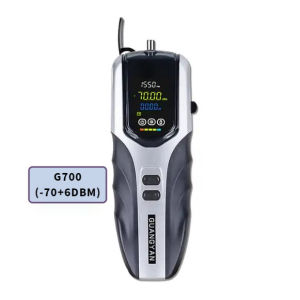

The G7 Optical Power Meter is a high-precision, rechargeable, color LCD screen fiber handheld optical measurement tool designed for use in various industries, including telecommunications, data centers, and network testing. It features versatile connector compatibility with FC, ST, and SC connectors, making it an ideal choice for professionals working with optical fiber networks.

Key Features

• High Precision Measurements: The G7 Optical Power Meter offers accurate power measurements with a wide range of -70~+3 dBm, -50~+10 dBm, and -50~+26 dBm depending on the model.
• Easy-to-Read Color LCD Screen: The device's large, high-resolution color LCD screen provides clear and easy-to-read results, even in low-light conditions.
• Versatile Connector Compatibility: With support for FC, ST, and SC connectors, the G7 Optical Power Meter is compatible with a wide range of optical fiber networks.

Technical Specifications

| Specification | Value | | --- | --- | | Wavelength Range | 800~1700 nm | | Probe Type | InGaAs | | Power Measurement Range | -70~+3 dBm (G7-00), -50~+10 dBm (G7-10), -50~+26 dBm (G7-50) | | Standard Wavelength (nm) | 850, 980, 1300, 1310, 1490, 1550, 1625 | | Interface Type | 2.5mm universal interface | | Detection Area (μm) | 300 | | Charging Voltage | 5V | | Storage Temperature | -25℃~+70℃ | | Display Resolution | Linear display: 0.1%, Logarithmic display: 0.01 dBm | | Operating Temperature | -10℃~+60℃ | | Battery Life | >13 hours | | Product Size | 127mm45mm20mm | | Product Weight | 81g |

How to Use G7 Optical Power Meter

Step-by-Step Guide

1. Power On: Press the power button to turn on the device.
2. Select Wavelength: Use the arrow keys to navigate through the available wavelengths and press the enter button to select the desired wavelength.
3. Connect Fiber Connector: Insert the appropriate fiber connector (FC, ST, or SC) into the device's interface.
4. Measure Power: Press the measure button to obtain the power measurement reading.
5. Store Data: To store the measurement data, press the store button. The data will be saved in the device's memory.

Troubleshooting Tips

• No Power Reading: Ensure that the fiber connector is properly connected and that the selected wavelength matches the fiber network's wavelength.
• Low Battery: Charge the device using the included charger if the battery life is low.
• Display Issues: Adjust the brightness settings or try resetting the device if the display is difficult to read.

Applications of G7 Optical Power Meter

Telecommunications Industry

The G7 Optical Power Meter is widely used in the telecommunications industry for testing and troubleshooting optical fiber networks. It provides accurate power measurements, enabling technicians to identify and resolve network issues quickly.

Data Centers

Data centers rely on optical fiber networks for high-speed data transmission. The G7 Optical Power Meter ensures that the network operates efficiently by providing precise power measurements and detecting potential issues.

Network Testing

Network testing professionals use the G7 Optical Power Meter to test the performance of optical fiber networks. Its versatile connector compatibility and high precision make it an essential tool for network testing.

Advantages of G7 Optical Power Meter

High Precision Measurements

The G7 Optical Power Meter offers accurate power measurements with a wide range of -70~+3 dBm, -50~+10 dBm, and -50~+26 dBm depending on the model. This high precision enables professionals to identify and resolve network issues quickly.

Easy-to-Read Color LCD Screen

The device's large, high-resolution color LCD screen provides clear and easy-to-read results, even in low-light conditions. This feature makes it ideal for use in various environments, including data centers and telecommunications networks.

Versatile Connector Compatibility

With support for FC, ST, and SC connectors, the G7 Optical Power Meter is compatible with a wide range of optical fiber networks. This versatility makes it an essential tool for professionals working with different types of fiber networks.
