LENMAX DC5V WS2812B RGB LED Light Panel Module: A Comprehensive Guide

What is LENMAX DC5V WS2812B RGB LED Light Panel Module?

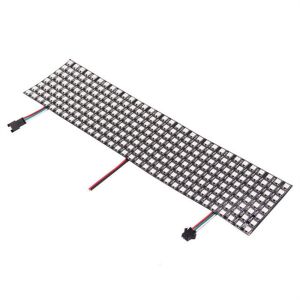

The LENMAX DC5V WS2812B RGB LED Light Panel Module is a versatile and powerful individually addressable LED panel designed for a wide range of applications. It comes in three different sizes: 8x8, 16x16, and 8x32 pixels, making it suitable for various projects and requirements. This module features a high-quality WS2812B IC, which ensures excellent performance and reliability. With its low power consumption of 0.3W per pixel, this LED panel is an ideal choice for both indoor and outdoor use.

Key Features

• Individually Addressable: Each pixel on the panel can be controlled independently, allowing for precise and intricate designs.
• Superior Color Accuracy: The RGB LEDs provide accurate and vibrant colors, making it perfect for displaying graphics, animations, and other visual content.
• Low Power Consumption: With only 0.3W per pixel, this LED panel is energy-efficient and cost-effective.
• Wide Voltage Range: The module operates at DC5V, making it compatible with a variety of power sources.
• Compact Design: The lightweight and compact design makes it easy to install and integrate into various projects.

Applications

The LENMAX DC5V WS2812B RGB LED Light Panel Module has numerous applications, including:

• Advertising: Display eye-catching graphics and animations to attract customers and promote products.
• Entertainment: Create mesmerizing light shows and visual effects for parties, concerts, and other events.
• Decoration: Enhance the ambiance of homes, offices, and public spaces with customizable LED displays.
• Signage: Design informative and engaging digital signage for businesses, schools, and other organizations.

How to Install and Use LENMAX DC5V WS2812B RGB LED Light Panel Module

To install and use the LENMAX DC5V WS2812B RGB LED Light Panel Module, follow these steps:

Required Components

• LENMAX DC5V WS2812B RGB LED Light Panel Module
• Power Supply: A DC5V power source with sufficient current capacity to power the LED panel.
• Microcontroller: An Arduino or Raspberry Pi microcontroller to control the LED panel.
• Wires: Connectors and wires to establish connections between the components.

Wiring Instructions

1. Connect the power supply to the VCC and GND pins of the LED panel.
2. Connect the data pin of the LED panel to the digital output pin of the microcontroller.
3. Connect the ground pin of the microcontroller to the GND pin of the LED panel.

Programming and Control

To control the LENMAX DC5V WS2812B RGB LED Light Panel Module, you will need to write code for your microcontroller. Here's an example using the Adafruit Neopixel library for Arduino:

#include <Adafruit_NeoPixel.h>

#define PIN 6
#define NUMPIXELS 64 // Change this value according to the size of your LED panel

Adafruit_NeoPixel pixels = Adafruit_NeoPixel(NUMPIXELS, PIN, NEO_GRB + NEO_KHZ800);

void setup() {
  pixels.begin();
}

void loop() {
  for(int i = 0; i < NUMPIXELS; i++) {
    pixels.setPixelColor(i, pixels.Color(255, 0, 0));
  }
  pixels.show();
  delay(1000);
}

Comparing LENMAX DC5V WS2812B RGB LED Light Panel Module with Other LED Panels

Specifications Comparison

| Specification | LENMAX DC5V WS2812B RGB LED Light Panel Module | Other LED Panels | | --- | --- | --- | | Power Consumption | 0.3W/pixel | Varies | | Voltage Range | DC5V | Varies | | Pixel Size | 8x8, 16x16, 8x32 | Varies | | IC Type | WS2812B | Varies | | Color Accuracy | High | Varies |

Price Comparison

The LENMAX DC5V WS2812B RGB LED Light Panel Module offers excellent value for its price, considering its superior performance and reliability. Compared to other LED panels, it is competitively priced and provides better features and specifications.

Conclusion

The LENMAX DC5V WS2812B RGB LED Light Panel Module is a powerful and versatile individually addressable LED panel that offers excellent performance and reliability. With its low power consumption, wide voltage range, and compact design, it is suitable for a wide range of applications, including advertising, entertainment, decoration, and signage. By following the installation and programming instructions, you can easily integrate this LED panel into your projects and create stunning visual effects.
