74HC4051 & CD4051: A Guide to Single 8-Channel Analog Multiplexer Selector Modules

What is a Single 8-Channel Analog Multiplexer Selector Module?

Multiplexers are electronic devices used to select one of multiple input signals and route it to a single output. In the case of the 74HC4051 and CD4051 modules, they are single 8-channel analog multiplexer selector modules designed to simplify signal processing in various electronic projects.

Introduction to Multiplexers

Multiplexers play a crucial role in signal processing by allowing multiple input signals to be connected to a single output line. This reduces the number of required connections and simplifies the overall design. In this guide, we will focus on the 74HC4051 and CD4051 modules, which are popular choices for electronics enthusiasts and professionals alike.

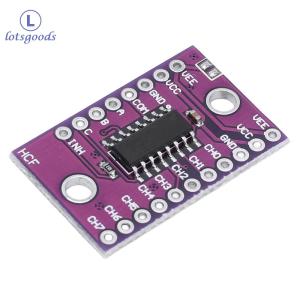

Overview of 74HC4051 & CD4051 Modules

The 74HC4051 and CD4051 modules are single 8-channel analog multiplexer selector modules that provide a simple and cost-effective solution for signal processing. They are ideal for projects that require multiple input signals to be routed to a single output line.

How to Use Arduino Distributor Resolver with Multiplexers

Integrating multiplexers with Arduino boards is a common practice in electronics projects. In this section, we will explore how to connect the 74HC4051 and CD4051 modules to an Arduino board and program the Arduino distributor resolver to control the multiplexer.

Connecting the Multiplexer Module to Arduino

To connect the 74HC4051 or CD4051 module to an Arduino board, follow these steps:

1. Connect the VCC pin of the multiplexer module to the 5V pin on the Arduino board.
2. Connect the GND pin of the multiplexer module to the GND pin on the Arduino board.
3. Connect the address pins (A0, A1, and A2) of the multiplexer module to digital pins on the Arduino board.
4. Connect the input channels (IN0 to IN7) of the multiplexer module to the desired input signals.
5. Connect the output channel (OUT) of the multiplexer module to the desired output pin on the Arduino board.

Programming the Arduino Distributor Resolver

Once the multiplexer module is connected to the Arduino board, you can program the Arduino distributor resolver to control the multiplexer. Here's a sample code snippet to get you started:

// Define the address pins
int A0 = 2;
int A1 = 3;
int A2 = 4;

void setup() {
  // Set the address pins as outputs
  pinMode(A0, OUTPUT);
  pinMode(A1, OUTPUT);
  pinMode(A2, OUTPUT);
}

void loop() {
  // Set the address pins to select the desired input channel
  digitalWrite(A0, LOW);
  digitalWrite(A1, HIGH);
  digitalWrite(A2, LOW);

  // Read the output from the selected input channel
  int output = analogRead(A0);
}

Benefits of Using 8-Channel Analog Multiplexer Selector Modules

Using 8-channel analog multiplexer selector modules, such as the 74HC4051 and CD4051 modules, offers several advantages for electronics projects:

• Improved Signal Processing: Multiplexers enable efficient signal processing by routing multiple input signals to a single output line, reducing the number of required connections and simplifying the overall design.

• Cost-Effective Solution: Multiplexers provide a cost-effective solution for electronics projects by reducing the number of required components and minimizing the complexity of the design.

Troubleshooting Common Issues with Multiplexers

While using multiplexers, you may encounter some common issues. Here are some tips to help you identify and resolve these problems:

Identifying Problems with Multiplexer Connections

To identify problems with multiplexer connections, check the following:

• Ensure that the VCC and GND pins are properly connected to the power supply.
• Verify that the address pins are correctly connected to the digital pins on the Arduino board.
• Check that the input channels are connected to the desired input signals.
• Confirm that the output channel is connected to the desired output pin on the Arduino board.

Resolving Issues with Arduino Distributor Resolver

If you encounter issues with the Arduino distributor resolver, try the following troubleshooting steps:

• Double-check the code for any syntax errors or incorrect pin assignments.
• Ensure that the Arduino board is properly powered and connected to the computer.
• Verify that the Arduino IDE is up-to-date and configured correctly.
• If the problem persists, consult the documentation or seek assistance from online forums or communities.
