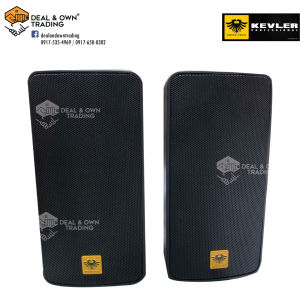

KEVLER AWS-106TB 6.5\" 200W 2-Way Full Range Passive Waterproof Wall Mount Speaker with 100V (PAIR)

Product Overview

The KEVLER AWS-106TB is a highly weather-resistant, 6.5\" 2-way full range loudspeaker designed for both indoor and outdoor applications. This waterproof wall mount speaker offers excellent sound quality and durability, making it ideal for meeting rooms, shops, water parks, swimming pools, and other environments where high-quality audio is required. With a maximum power rating of 200W and a frequency response range of 60Hz-20KHz, this speaker delivers crisp, clear sound even at high volumes. Its IP46 waterproof rating ensures that it can withstand harsh weather conditions, making it perfect for outdoor installations.

Key Features

• High Power: With a maximum power rating of 200W, this speaker delivers clear, powerful sound even at high volumes.
• Waterproof: The AWS-106TB has an IP46 waterproof rating, making it suitable for both indoor and outdoor applications.
• Wall Mount Bracket: This speaker comes with a wall mount bracket, allowing for easy installation and secure mounting.
• Multi-Tap Transformer: The AWS-106TB is equipped with a multi-tap transformer, offering 100V tap options of 80, 40, and 20W for flexible power settings.
• Wide Frequency Range: With a frequency response range of 60Hz-20KHz, this speaker provides excellent sound quality and clarity.
• Impedance: The AWS-106TB has an impedance of 16 ohms, making it compatible with a wide range of audio systems.
• Sensitivity: This speaker has a sensitivity rating of 89dB, allowing it to produce loud, clear sound even at low power levels.

Applications

The KEVLER AWS-106TB is perfect for a wide variety of indoor and outdoor applications, including:

• Meeting rooms
• Shops
• Water parks
• Swimming pools
• Outdoor background music
• Other indoor and outdoor environments requiring high-quality audio

Technical Specifications

Dimensions & Weight

• Dimensions: 245mm x 220mm x 120mm (L x W x H)
• Weight: 3.5kg (pair)

Audio Performance

• Frequency Response: 60Hz-20KHz
• Impedance: 16 ohms
• Sensitivity: 89dB
• Max Power: 200W
• 100V Tap: 80, 40, 20W

Installation & Usage

Wall Mounting Instructions

To install the KEVLER AWS-106TB, follow these steps:

1. Choose a suitable location for mounting the speaker.
2. Attach the wall mount bracket to the chosen location using screws.
3. Carefully align the speaker with the wall mount bracket and secure it in place using the included hardware.

Connecting to Audio System

To connect the AWS-106TB to your audio system, follow these steps:

1. Connect the speaker wire from your audio system to the speaker terminals on the AWS-106TB.
2. Set the multi-tap transformer to the desired power setting (80, 40, or 20W).
3. Turn on your audio system and adjust the volume as needed.

Using Multi-Tap Transformer

The AWS-106TB is equipped with a multi-tap transformer, which allows you to adjust the power settings to match your audio system's output. To use the multi-tap transformer, simply set it to the desired power setting (80, 40, or 20W) using the included switch.

Warranty & Support

The KEVLER AWS-106TB comes with a 12-month service warranty, providing peace of mind and protection against defects or malfunctions. If you have any questions or concerns about your speaker, please contact our customer support team for assistance.

In conclusion, the KEVLER AWS-106TB is a high-quality, weather-resistant speaker that delivers exceptional sound quality and durability. With its waterproof design, wall mount bracket, and multi-tap transformer, this speaker is perfect for a wide variety of indoor and outdoor applications. Order yours today and experience the power of KEVLER audio technology!"
