NVMe M.2 SSD Heat Dissipation Solutions: An In-Depth Look

Introduction to NVMe M.2 SSD Heat Dissipation

NVMe M.2 SSDs are solid-state drives that use the Non-Volatile Memory Express (NVMe) interface and come in a small form factor, typically 22mm x 80mm (M.2 2280). These drives have gained popularity due to their compact size, high performance, and low power consumption. However, as they become more powerful, heat dissipation becomes a critical concern. In this article, we will explore NVMe M.2 SSD heat dissipation solutions, their importance, and how to choose the right one for your needs.

NVMe M.2 SSD Overview

NVMe M.2 SSDs are built on a PCIe interface, which allows them to achieve higher data transfer rates and lower latency compared to traditional SATA SSDs. This increased performance comes at the cost of higher heat generation, making effective cooling solutions essential for maintaining optimal drive performance and longevity.

Importance of Heat Dissipation for NVMe M.2 SSDs

Heat dissipation plays a crucial role in ensuring the reliability and performance of NVMe M.2 SSDs. Excessive heat can lead to reduced lifespan, data corruption, and even hardware failure. By implementing proper cooling solutions, users can mitigate these risks and enjoy a more stable and efficient storage experience.

NVMe M.2 SSD Cooling Solutions

There are several cooling solutions available for NVMe M.2 SSDs, each with its own advantages and disadvantages. In this section, we will discuss three popular options: M.2 cooling fin radiator, NVMe M.2 SSD with built-in heat sink, and external M.2 SSD cooling solutions.

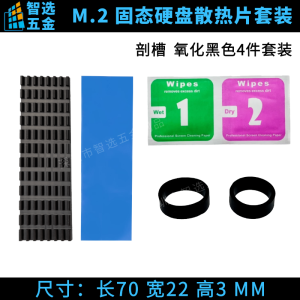

M.2 Cooling Fin Radiator

M.2 cooling fin radiators are passive cooling solutions designed to dissipate heat from NVMe M.2 SSDs. They typically consist of a metal heatsink with fins that increase surface area for better heat dissipation. These radiators can be easily installed on top of the M.2 slot, providing an effective way to keep your SSD cool during operation.

NVMe M.2 SSD with Built-in Heat Sink

Some NVMe M.2 SSDs come with built-in heat sinks, which are integrated directly into the drive's design. These heat sinks help dissipate heat more efficiently than drives without built-in cooling solutions. When shopping for an NVMe M.2 SSD, look for models with built-in heat sinks to ensure better thermal management.

External M.2 SSD Cooling Solutions

For users who require even more cooling power, external M.2 SSD cooling solutions are available. These solutions typically involve installing an external fan or liquid cooling system that connects to the M.2 slot via a bracket or adapter. While these solutions may be more complex to set up, they can significantly improve heat dissipation and drive performance.

Factors Influencing NVMe M.2 SSD Heat Dissipation

Several factors can impact the effectiveness of NVMe M.2 SSD heat dissipation solutions. In this section, we will discuss three key factors: NVMe M.2 SSD form factor (2280), M.2 SSD cooling solution efficiency, and NVMe M.2 SSD performance & heat generation.

NVMe M.2 SSD Form Factor (2280)

The 2280 form factor is the most common size for NVMe M.2 SSDs, measuring 22mm x 80mm. This compact size makes it challenging to dissipate heat effectively, which is why proper cooling solutions are essential. When choosing a cooling solution, ensure it is compatible with the 2280 form factor.

M.2 SSD Cooling Solution Efficiency

The efficiency of an M.2 SSD cooling solution depends on factors such as the material used, surface area, and airflow. Higher-quality cooling solutions typically use materials like aluminum or copper, which have excellent thermal conductivity properties. Additionally, larger surface areas and improved airflow can help dissipate heat more effectively.

NVMe M.2 SSD Performance & Heat Generation

As NVMe M.2 SSDs become more powerful, they generate more heat during operation. This increased heat generation requires more robust cooling solutions to maintain optimal drive performance and longevity. When evaluating cooling solutions, consider the expected performance and heat generation of your specific NVMe M.2 SSD model.

Choosing the Right NVMe M.2 SSD Heat Dissipation Solution

Selecting the appropriate NVMe M.2 SSD heat dissipation solution depends on your specific needs and requirements. In this section, we will discuss three key considerations: evaluating NVMe M.2 SSD cooling needs, comparing M.2 cooling fin radiator options, and selecting the best NVMe M.2 SSD with heat sink.

Evaluating NVMe M.2 SSD Cooling Needs

Before choosing a cooling solution, assess your NVMe M.2 SSD's cooling requirements based on factors such as expected performance, heat generation, and ambient temperature. This will help you determine the level of cooling needed to maintain optimal drive performance and longevity.

Comparing M.2 Cooling Fin Radiator Options

When comparing M.2 cooling fin radiator options, consider factors such as material, surface area, airflow, and compatibility with your specific NVMe M.2 SSD model. Higher-quality radiators typically offer better thermal management and are easier to install.

Selecting the Best NVMe M.2 SSD with Heat Sink

When choosing an NVMe M.2 SSD with a built-in heat sink, look for models that offer superior thermal management and are compatible with your system. Consider factors such as expected performance, heat generation, and ambient temperature when making your selection.
