12-24V Battery Disconnect Switch: A Comprehensive Guide

What is a 12-24V Battery Disconnect Switch?

A 12-24V Battery Disconnect Switch, also known as a Master Switch Battery Cut Off, is a device designed to disconnect the battery from the electrical system in vehicles like cars, RVs, yachts, trucks, and other vehicles. This switch provides a convenient way to ensure the safety and security of your vehicle by preventing unauthorized access to its electrical systems.

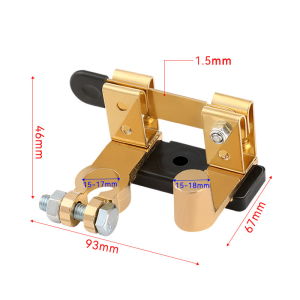

Key Features & Specifications

Our 12-24V Battery Disconnect Switch has the following specifications:

• Material: Plastic + Brass plated red copper
• Rated Current: 250A
• Instantaneous Current: 750A
• Scope of Application: Automobile, RV, yacht, truck, and truck
• Package Weight: 275g
• Package Size: 7.2 * 7.2 * 10cm

Applications & Benefits

The 12-24V Battery Disconnect Switch is widely used in various vehicles, providing several benefits:

• Security: By disconnecting the battery, it prevents unauthorized access to your vehicle's electrical systems.
• Safety: It helps protect your vehicle's electrical components from potential damage caused by short circuits or other electrical issues.
• Convenience: This switch allows you to easily turn off the power supply to your vehicle when it's not in use, saving energy and extending the life of your battery.

How to Install a 12-24V Battery Disconnect Switch

Installing a 12-24V Battery Disconnect Switch is a straightforward process that can be completed in just a few steps.

Tools & Materials Needed

Before beginning the installation process, make sure you have the following tools and materials:

• 12-24V Battery Disconnect Switch: Ensure you have the correct switch for your vehicle.
• Screwdriver: To remove and install screws during the installation process.
• Wire Strippers: To strip wires for proper connection.
• Electrical Tape: To secure connections and prevent short circuits.

Step-by-Step Installation Process

1. Turn off the vehicle's power supply: Before starting the installation, make sure the vehicle's power supply is turned off to avoid any electrical hazards.
2. Locate the battery: Identify the location of the battery in your vehicle. It is usually located under the hood or in the trunk.
3. Disconnect the negative terminal: Using a wrench or socket, loosen the nut on the negative terminal of the battery and carefully remove the cable.
4. Install the switch: Mount the 12-24V Battery Disconnect Switch onto the battery post using the included hardware.
5. Connect the negative terminal: Reconnect the negative terminal cable to the switch, making sure it is securely fastened.
6. Test the installation: Turn on the vehicle's power supply and test the switch to ensure it functions correctly.

Troubleshooting Common Issues

If you encounter any issues during the installation process or while using the 12-24V Battery Disconnect Switch, here are some solutions and tips to help you resolve them.

Identifying Problems

Some common issues that may arise include:

• Switch not functioning: If the switch does not turn off the power supply, check the connections and ensure they are securely fastened.
• Short circuits: If you notice sparks or smoke, immediately turn off the power supply and check for any loose connections or damaged wires.

Solutions & Tips

To resolve these issues, follow these steps:

• Check connections: Ensure all connections are secure and properly fastened.
• Inspect wires: Look for any damaged or frayed wires and replace them if necessary.
• Consult the manual: Refer to the installation manual for additional troubleshooting steps and guidance.

Conclusion

The 12-24V Battery Disconnect Switch is a valuable addition to any vehicle, providing enhanced security, safety, and convenience. By following the step-by-step installation process and troubleshooting tips outlined in this guide, you can easily install and maintain your switch, ensuring the optimal performance of your vehicle's electrical systems.
