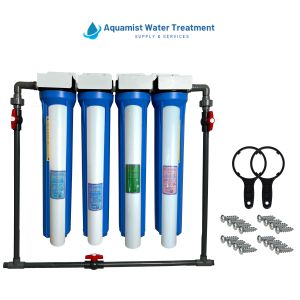

4 Stages Water Filter All Sediment Heavy Duty Complete Set with PVC By-Pass 20" Slim Type All Blue

Water quality is essential for our health and well-being. To ensure clean and safe drinking water, it is crucial to have a reliable water filtration system. This article will guide you through the process of understanding, installing, and maintaining a complete water filter system, specifically the 4 Stages Water Filter All Sediment Heavy Duty Complete Set with PVC By-Pass.

What is a Complete Water Filter System?

A complete water filter system is designed to remove impurities and contaminants from water, providing clean and safe drinking water. It consists of various components working together to achieve optimal filtration results.

Components of a Complete Water Filter System

The 4 Stages Water Filter All Sediment Heavy Duty Complete Set includes:

• Housing: A durable 20" slim type heavy-duty water filter housing in blue color.
• Cartridge: Hydrosep sediment filters with different micron ratings (20, 10, 5, and 1 micron).
• PVC Fittings: PVC gray fittings such as male adaptors, pipes, couplings, elbows, unions, ball valves, and tees.
• Hardware: Metal water filter housing screws, brackets, and spanners/wrenches.

Benefits of a Complete Water Filter System

A complete water filter system offers several benefits:

• Improved taste and odor: Removes unpleasant tastes and odors caused by contaminants.
• Healthier drinking water: Reduces exposure to harmful contaminants, such as bacteria, viruses, and heavy metals.
• Extended appliance life: Protects plumbing systems and appliances from sediment buildup.
• Cost-effective: Saves money on bottled water and reduces the risk of costly repairs due to contaminated water.

How to Install a Slim Type Water Filter

Installing a slim type water filter is a straightforward process that can be completed in a few steps. Here's how to install the 4 Stages Water Filter All Sediment Heavy Duty Complete Set:

Tools Required for Installation

• Adjustable wrench or pipe wrench
• Screwdriver
• Pliers
• Teflon tape

Step-by-Step Installation Process

1. Turn off the water supply: Locate the main water valve and turn it clockwise to shut off the water supply.
2. Drain the system: Open a nearby faucet to drain any remaining water in the pipes.
3. Install the PVC fittings: Connect the PVC fittings according to the provided diagram, using Teflon tape to ensure a tight seal.
4. Attach the filter housing: Secure the blue housing to the PVC fittings using the metal brackets and screws.
5. Insert the cartridges: Insert the Hydrosep sediment filters into the housing, starting with the largest micron rating and progressing to the smallest.
6. Reconnect the water supply: Turn the main water valve counterclockwise to restore the water supply.
7. Test the system: Turn on the faucet and check for any leaks or issues.

Understanding the Heavy Duty PVC By-Pass

A heavy duty PVC by-pass is an essential component of the 4 Stages Water Filter All Sediment Heavy Duty Complete Set. It allows for easy maintenance and cleaning of the filter cartridges without interrupting the water supply.

Purpose of a PVC By-Pass

The PVC by-pass serves two primary functions:

• Maintenance: Allows for easy removal and replacement of filter cartridges without shutting off the water supply.
• Emergency bypass: Provides a direct path for water to flow through the system if the filter becomes clogged or damaged.

How to Use a PVC By-Pass

To use the PVC by-pass:

1. Locate the by-pass valve: Find the PVC gray ball valve connected to the filter housing.
2. Open the by-pass valve: Turn the handle clockwise to open the valve and allow water to bypass the filter.
3. Perform maintenance: Remove the filter cartridge and clean or replace it as needed.
4. Close the by-pass valve: Turn the handle counterclockwise to close the valve and resume normal filtration.

Key Features of the 4 Stages Water Filter Set

The 4 Stages Water Filter All Sediment Heavy Duty Complete Set offers several key features:

Sediment Filtration Stages

The set includes four Hydrosep sediment filters with different micron ratings:

• 20 micron: Removes large particles, such as sand and silt.
• 10 micron: Filters out smaller particles, such as rust and scale.
• 5 micron: Captures finer particles, such as dirt and debris.
• 1 micron: Removes the smallest particles, such as bacteria and cysts.

Importance of Sediment Filtration

Sediment filtration is crucial for maintaining water quality and protecting plumbing systems and appliances. By removing contaminants, sediment filtration helps prevent clogs, corrosion, and damage to pipes and fixtures.

Package Inclusions for the All Sediment Water Filter

The 4 Stages Water Filter All Sediment Heavy Duty Complete Set includes all necessary components for installation and maintenance:

Housing and Cartridge Components

• Housing: Durable 20" slim type heavy-duty water filter housing in blue color.
• Cartridges: Hydrosep sediment filters with different micron ratings (20, 10, 5, and 1 micron).

PVC Fittings and Hardware

• PVC fittings: Gray male adaptors, pipes, couplings, elbows, unions, ball valves, and tees.
• Hardware: Metal water filter housing screws, brackets, and spanners/wrenches.

In conclusion, the 4 Stages Water Filter All Sediment Heavy Duty Complete Set with PVC By-Pass is an excellent choice for improving water quality and protecting plumbing systems and appliances. By following the installation instructions and performing regular maintenance, you can enjoy clean and safe drinking water for years to come.
