CBB61 Dual-Lead Capacitor: A Comprehensive Guide

What is a CBB61 Dual-Lead Capacitor?

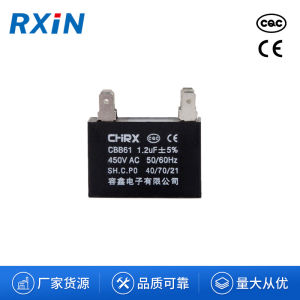

The CBB61 dual-lead capacitor is a high-frequency power capacitor that belongs to the polypropylene film capacitor family. It is manufactured by Rongxin, a reputable brand known for its quality electrical components. This capacitor has a wide range of applications, primarily in household appliances, due to its exceptional electrical properties and reliability.

Key Features & Specifications

• Model: Cbb61
• Application Scope: Compensation
• Lead Type: Same Direction Lead
• Equivalent Series Resistance (ESR): 0 Mohm
• Rated Voltage: 450V
• Nominal Capacity: 0.75, 1, 1.2, 1.25, 1.5, 1.8, 2, 2.2, 2.5, 3, 3.3, 3.5, 4, 4.25, 4.5, 5, 5.5, 6, 7, 7.5, 8, 9, 10, 12, 14, 15, 16, 18, 20, 24, 25, 30, 35, 40
• Item No.: Cbb61b400v
• Application Field: Household Appliances
• Dielectric Material: Metallized Polypropylene Film
• Encapsulation/Shell: Epoxy Resin/Plastic Square Shell
• Series: Cbb61
• Operating Temperature Range: -25~70
• Tolerance: ±5%
• Installation Type: Fixed
• Size: 0mm
• Height-Installation (Maximum): 0
• Temperature Coefficient: -40~70
• Loss: 0.002

Applications & Benefits

The CBB61 dual-lead capacitor is widely used in various applications, particularly in household appliances, due to its excellent performance and reliability. Some of the benefits include:

• High-frequency operation: The CBB61 capacitor is capable of handling high-frequency signals, making it ideal for use in applications that require rapid switching and high-speed performance.
• Low loss: With a low loss factor of 0.002, the CBB61 capacitor ensures minimal energy loss, leading to improved efficiency and reduced power consumption.
• Wide operating temperature range: The CBB61 capacitor can operate within a wide temperature range (-25~70°C), making it suitable for use in a variety of environments.
• High reliability: The CBB61 capacitor is manufactured using high-quality materials and processes, ensuring its long-term reliability and durability.

Understanding the Technology Behind the CBB61 Capacitor

The CBB61 dual-lead capacitor is built using advanced technology, incorporating metallized polypropylene film dielectric material and epoxy resin/plastic square shell encapsulation. These features contribute to its exceptional performance and reliability.

Metallized Polypropylene Film Dielectric Material

The dielectric material used in the CBB61 capacitor is a metallized polypropylene film. This material provides excellent insulation properties, making it ideal for use in high-voltage applications. Additionally, the metallized layer ensures uniform distribution of electric fields, reducing the risk of breakdown and increasing the overall reliability of the capacitor.

Epoxy Resin & Plastic Square Shell Encapsulation

The CBB61 capacitor is encapsulated in a plastic square shell, which is then filled with epoxy resin. This encapsulation method provides excellent mechanical stability and protection against environmental factors, such as moisture and contaminants. The epoxy resin also helps to reduce the risk of mechanical stress-induced failures, further enhancing the reliability of the capacitor.

How to Choose the Right CBB61 Capacitor for Your Needs

When selecting a CBB61 dual-lead capacitor, it is essential to consider various factors that can impact its performance and reliability. Some important considerations include:

Considerations for Household Appliances

• Rated voltage: Ensure that the rated voltage of the CBB61 capacitor is compatible with the operating voltage of the household appliance.
• Nominal capacity: Select a CBB61 capacitor with a nominal capacity that meets the requirements of the household appliance.
• Operating temperature range: Verify that the operating temperature range of the CBB61 capacitor is suitable for the intended environment.

Importance of ESR & Tolerance

• Equivalent Series Resistance (ESR): A low ESR value indicates better performance and higher efficiency. When selecting a CBB61 capacitor, choose one with a low ESR value to minimize energy loss and improve overall system performance.
• Tolerance: The tolerance of a capacitor determines the acceptable variation in its capacitance value. A lower tolerance value indicates a more precise capacitance value, which is beneficial for applications that require high accuracy.

Installing & Maintaining the CBB61 Capacitor

Proper installation and maintenance are crucial for ensuring the reliable operation of the CBB61 dual-lead capacitor. Some important considerations include:

Proper Installation Techniques

• Follow manufacturer guidelines: Always refer to the manufacturer's installation guidelines when installing a CBB61 capacitor.
• Use appropriate tools: Use the correct tools and equipment to ensure proper installation.
• Avoid mechanical stress: Handle the capacitor with care to avoid applying excessive mechanical stress, which can lead to failure.

Maintenance Tips & Troubleshooting

• Regular inspection: Periodically inspect the CBB61 capacitor for signs of wear, damage, or contamination.
• Cleanliness: Maintain a clean environment around the capacitor to prevent the accumulation of dust or other contaminants.
• Troubleshooting: If issues arise, consult the manufacturer's troubleshooting guide for guidance on resolving common problems.
