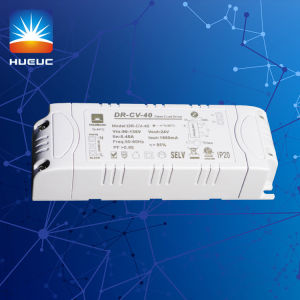

DALI Dimming LED Constant Power Supply 12V/24V/36V Constant Pressure 48W Output Compatible ABB KNX System
DALI Dimming LED Constant Power Supply 12V/24V/36V Constant Pressure 48W Output Compatible ABB KNX System
Understanding the ABB KNX Compatible Power Supply
The ABB KNX compatible power supply is a highly efficient and versatile solution for lighting applications, specifically designed to work with DALI dimming LED systems. This product series offers a working efficiency of 80%, an IP20 protection level, and a compact dimension of 1324429mm.
Key Features & Specifications
- Working Efficiency: 80%
- Protection Level: IP20
- Dimension: 1324429mm
- Weight: 200g
- Product Certification: UL
- Origin: Shenzhen
- Input Voltage Range: 100-240V
- Output Power: 48W
- Output Voltage: 12/24/48V
- Output Ripple Noise: 50mV
- Output Accuracy: 5%
- Adjustment Rate: 3%
- Load Adjustment Rate: 3%
- Output Current: 1200-4000mA
- Operating Frequency: 50/60Hz
- Operating Temperature: -25 to 50℃
How It Works: 12V/24V/36V Constant Pressure
The ABB KNX compatible power supply operates at a constant pressure of 12V, 24V, or 36V, depending on the specific application requirements. This ensures stable and reliable performance across a wide range of lighting systems.
Applications & Benefits: Constant Power Supply for Lighting
The ABB KNX compatible power supply is ideal for various lighting applications, including indoor environments such as offices, homes, and commercial spaces. Its constant power supply ensures optimal performance and energy efficiency, making it a cost-effective solution for lighting systems.
Installation & Setup Guide
Installing the ABB KNX compatible power supply is a straightforward process that can be completed by following these steps:
Preparing for Installation
Before beginning the installation process, ensure that you have all the necessary tools and equipment, including a screwdriver, pliers, and electrical tape. Additionally, make sure that the power supply is compatible with your existing lighting system and that you have the appropriate mounting hardware.
Step-by-Step Installation Process
- Turn off the power supply at the circuit breaker.
- Mount the power supply on a flat surface using the provided mounting hardware.
- Connect the input wires to the appropriate terminals on the power supply.
- Connect the output wires to the LED lights or other devices in your lighting system.
- Turn on the power supply at the circuit breaker and test the system to ensure proper operation.
Troubleshooting Common Issues
If you encounter any issues during installation or operation, refer to the troubleshooting guide included with the power supply. Some common problems include incorrect wiring, insufficient power, or faulty components. In most cases, these issues can be resolved by following the troubleshooting steps provided.
Optimal Performance Tips
To maximize the performance and efficiency of your ABB KNX compatible power supply, consider implementing the following tips:
Maximizing Efficiency: Pulse Width Modulation (PWM)
Pulse width modulation (PWM) is a technique used to control the brightness of LED lights by varying the duty cycle of the power supply. By adjusting the PWM frequency, you can achieve precise dimming control and optimize energy consumption.
Ensuring Safety: IP20 Protection Level
The ABB KNX compatible power supply features an IP20 protection level, which provides basic protection against dust and accidental contact with live parts. To maintain safety, ensure that the power supply is installed in a dry and well-ventilated area, away from any potential hazards.
Enhancing User Experience: DALI Dimming Capabilities
DALI dimming capabilities allow for flexible and intuitive control of your lighting system. With the ABB KNX compatible power supply, you can easily adjust the brightness and color temperature of your LED lights using a simple interface or smartphone app. This enhances the overall user experience and adds a touch of modernity to your lighting design.
By following these guidelines and taking advantage of the advanced features offered by the ABB KNX compatible power supply, you can enjoy reliable, efficient, and stylish lighting solutions for your home or business.
