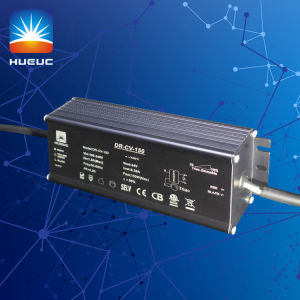

Huayue Direct Supply 80W Constant and Constant 0-10V Dimming power supply Pass CE/SAA/TUV/ERP Authentication

Brand: HuayukeProtection Type: Overload ProtectionApplication Scope: LED LightsAdapter Line Length: 0.3Communication Protocol: 0-10VInstallation Method: EmbeddedProduct Certification: CeWeight: 500GDimension: 180*42 * 28mmWork Efficiency: 86Warranty: 5 YearsProtection Level: Ip67Product Type: Embedded Switching Power SupplyCooling Type: Natural CoolingAnti-Counterfeiting Code: NoneWorking Environment:-25-50Product Series: DR-CV-80Display Mode: NoneNumber of Power Phases: 1Rated Power: 80WOutput Accuracy: 3

Model

DR-CV-80

DR-CV-80

DR-CV-80

DR-CV-80

  Output

Dc

12V

36V

50V

60V

Constant Range

20~28V

27~35V

40~50V

45~60V

Rated

3.3a

3A

2.1a

1.8A

Rated Power

92.4W

105W

105W

108W

Ripple and Noise

2000mvp-p

2000mvp-p

3000mvp-p

3000mvp-p

Adjustment Range

2.4-3.3a

2-3.1a

1.5-2.15a

1-1.85a

Accuracy

± 3% of Rated

Accuracy

± 3%

± 3%

± 3%

± 3%

Load Adjustment Rate

± 2%

± 2%

± 2%

± 2%

Start Time





Input

Range

90 ~ 265vac

Frequency Range

47-63Hz

Power Factor

110vac> 0.95 230VAC>0.95

Efficiency

87%

89%

90%

90%

Leakage

0.75ma 265vac

Protection

Overcurrent

110%~ 120% Protection Mode: Constant Limit, Automatic Recovery after Abnormal Load Conditions Are Removed

Overvoltage

Protection Mode: Turn Off the Output and Automatically Recover Or Restart the Recovery

Short Circuit

Protection Mode: Partition Mode, Which Can Be Automatically Restored after Exception Removal

Environment

Operating Temperature

-30 ℃ ~ 60 ℃

Working Humidity

20 ~ 95% RH, Non-Condensing

Storage Temperature, Humidity

-40℃~90℃ 10~95%RH

Safety Regulations

Withstand

1. Primary Pair Secondary 3750vac 2 Primary Pair Housing 2000vac 3 Secondary Pair Housing 2000vac

Safety Specifications

EN61347-1 EN61347-2-13 En62384

Emc electron magnetic compatibility

EMC Electron Magnetic Compatibility Degree of Anti-Interference

Comply with 610004-2,3,4,5,6,8,11. En61547 (Surge 4kv)

EMC Electron Magnetic Compatibility Launch

Compliant with En55015 and EN55022

Other

Size

180*42 * 28mm

Precautions for Use

1. the Installation Should Be Conducive to Heat Dissipation, Not Close to the Heat Source
2. Avoid Working in Abnormal State for a Long Time, for Example, the Input Exceeds the Range and the Input Is Lower than the Range.
3. the Connecting Line Must Be Firm, Which Is Better than Strengthening Insulation to Avoid Leakage,

Remarks

All Parameters Are Measured in the Input 230VAC, Rated Load, 25℃ Environment,

  This Product Is an Isolated Drive Power Supply with Aluminum Metal Shell. the Input Terminal Can Be Equipped with British Regulatory Plug/American Standard Plug/Europlug, Etc./, and the Output Terminal Is a Wiring Terminal, Which Is Convenient for Customers to Connect Any Wire and Can Also Be Used for Outlet Connection, the Overall Power Supply Is Black and the Long Strip Is Flat, Which Is Convenient for Customers to Design and Install Lamps.Maximum Power 100W Max, Input Is Generally 90-130V & 180-240V /AC, Output ≤ 82V,The Operating Frequency Is 48-62Hz, Active PFCs Function, Efficiency Can Reach 89% Cut with a Variety of Abnormal Protection Functions, Such as Output Open Circuit, Short Circuit, over Temperature, over, Overload, over and Other Functions, the Withstand Value Is 3750V. It Can Comply with Various Safety Regulations Such as EMC Conduction/Radiation.Dimming Range: 1%-100%, Smooth Dimming, No Flicker, No Jump Point, No Stroboscope Effect during DimmingThe Output Accuracy Is plus Or minus 5%, and the Load Adjustment Rate Is 50%,Constant Parameters Are Generally 12V 7500ma 24V 4200maConstant Parameters Can Generally Drive 8-12 Strings (3.2V Lamp Beads for Example) 2300Ma 24 Strings 1200ma 5-10 Strings 2800ma, Specific Parameters Can Be Adjusted.Proofing Generally Takes about 3 Days, and Batch Products Can Be Delivered Within 5-10 Days,Payment Methods Can Receive Cash on Delivery Bank Transfer, Alipay, Etc.The Components Used by Our Company Are All International Brands, for Example, Electrolytic Capacitor Is Japanese Ruby, IC Uses St Italian Semiconductor, MOS Uses St Fairy Child/Shilanwei, Etc.Packaging SpecificationsThis Driver Uses White Packaging, the Outer Size Is 32.52138.5, Each /20kg 12PCs Per , Can Receive Special Customized Packaging Specifications,
