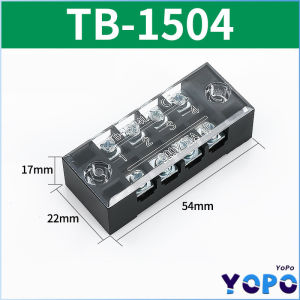

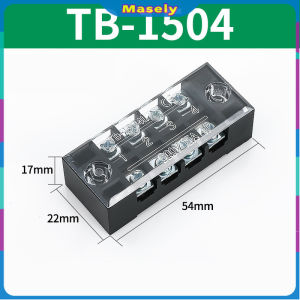

YoPo & Masely 15A Molded Terminal Block TB1504 TB1505 TB1506 600V Dual Row Barrier Screw Terminal Block

Product Overview

The YoPo & Masely 15A Molded Terminal Block TB1504 TB1505 TB1506 600V Dual Row Barrier Screw Terminal Block is a high-quality electrical component designed to connect household appliances, electronic circuits, machines, and other devices. These terminal blocks are widely used in various industries due to their reliability, safety, and ease of use.

Key Features

• Voltage Rating: 600V
• Current Rating: 15A
• Dual Row Barrier Screw Design: Ensures secure connections and easy installation.
• Removable Transparent Plastic Insulating Cover: Prevents accidental contact with end points, enhancing safety.
• Small Size: Compact design makes it ideal for tight spaces and easy installation.
• Good Electrical Conductivity: Ensures reliable connections and efficient power transfer.
• Prevents Screw Loss: Secures screws in place, reducing the risk of loss during installation.

Applications

These terminal blocks are suitable for various applications, including:

• Household Appliances: Connects to refrigerators, washing machines, air conditioners, and other home appliances.
• Electronic Circuits: Used in circuit boards, power supplies, and other electronic devices.
• Machines: Connects to industrial machinery, motors, and other equipment.

Installation & Usage

Before installing the terminal block, make sure to read the manufacturer's instructions carefully. Follow these steps for proper installation:

Preparation

1. Gather all necessary tools and materials, including the terminal block, wires, and screwdrivers.
2. Ensure the power supply is disconnected before beginning the installation process.

Step-by-step Guide

1. Insert the wire into the terminal block's screw terminal.
2. Tighten the screw using a screwdriver to secure the wire in place.
3. Repeat steps 1 and 2 for all wires connected to the terminal block.
4. Attach the removable transparent plastic insulating cover to prevent accidental contact with end points.
5. Reconnect the power supply and test the installation.

Safety Considerations

To ensure safe operation of the terminal block, consider the following protection mechanisms and preventive measures:

Protection Mechanisms

• Removable Transparent Plastic Insulating Cover: Prevents accidental contact with end points, enhancing safety.
• Dual Row Barrier Screw Design: Ensures secure connections and easy installation.

Preventive Measures

• Always disconnect the power supply before installing or removing the terminal block.
• Follow the manufacturer's instructions carefully to avoid damage or injury.
• Store the terminal block in a clean, dry location away from direct sunlight and moisture.

Comparison & Conclusion

Similar Products

The YoPo & Masely 15A Molded Terminal Block TB1504 TB1505 TB1506 600V Dual Row Barrier Screw Terminal Block competes with other terminal blocks in the market, such as:

• WAGO 221-411: A popular terminal block with similar features and voltage/current ratings.
• Phoenix Contact MTT 2.5/3-3: Another well-known terminal block with comparable specifications.

Final Thoughts

The YoPo & Masely 15A Molded Terminal Block TB1504 TB1505 TB1506 600V Dual Row Barrier Screw Terminal Block is a reliable and safe option for connecting household appliances, electronic circuits, machines, and other devices. With its dual row barrier screw design, removable transparent plastic insulating cover, and good electrical conductivity, it offers excellent performance and ease of use. By following the installation and usage guidelines, you can ensure a safe and efficient connection for your devices.
