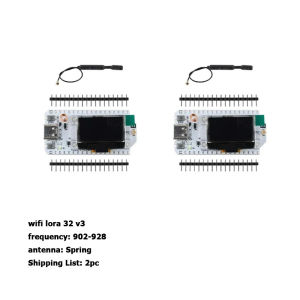

Heltec WiFi Lora 32 V3 IoT Module with ESP32-S3FN8 & 0.96 Inch OLED Display

Introduction to Heltec WiFi Lora 32 V3

Overview of Heltec WiFi Lora 32 V3

The Heltec WiFi Lora 32 V3 IoT module is a powerful and versatile device that combines the capabilities of LoRa, Wi-Fi, and Bluetooth technologies, making it ideal for a wide range of IoT applications. With the ESP32-S3FN8 chip, this module offers high-performance computing power, low power consumption, and robust connectivity options. Additionally, the built-in 0.96 inch OLED display provides a convenient way to monitor and control your IoT devices.

Key Features & Specifications

Here are some of the key features and specifications of the Heltec WiFi Lora 32 V3 IoT module:

• Model Number: WiFi Lora 32 V3
• Brand Name: Heltec Automation
• Origin: Mainland China
• LoRa Node Chip: SX1262
• USB to Serial Chip: CP2102
• Frequency: 470~510MHz, 863~928MHz
• Max. TX Power: 21±1dBm
• Max. Receiving Sensitivity: -136dBm @ SF12 BW = 125KHz
• Wi-Fi: 802.11 b/g/n, up to 150Mbps
• Bluetooth: Bluetooth 5 (LE)

Setting Up Your Heltec WiFi Lora 32 V3

Installing Required Libraries

To get started with the Heltec WiFi Lora 32 V3 IoT module, you'll first need to install the necessary libraries for your development environment. For Arduino IDE, you can use the Library Manager to install the required libraries, such as the Heltec WiFi Lora library and the OLED display library.

Connecting to Wi-Fi & Bluetooth

Once you have installed the required libraries, you can connect your Heltec WiFi Lora 32 V3 module to your Wi-Fi network and enable Bluetooth connectivity. You can use the Arduino IDE to write code that configures the Wi-Fi and Bluetooth settings, allowing you to establish a connection with your IoT devices.

Configuring the OLED Display

The built-in 0.96 inch OLED display on the Heltec WiFi Lora 32 V3 module provides a convenient way to monitor and control your IoT devices. To configure the OLED display, you can use the OLED display library to write code that initializes the display and displays text, images, or graphs.

Exploring Heltec WiFi Lora 32 V3 Capabilities

Integrating with Arduino

The Heltec WiFi Lora 32 V3 IoT module is compatible with Arduino, making it easy to integrate with your existing Arduino projects. You can use the Arduino IDE to write code that controls the module's functions, such as sending and receiving data over LoRa, Wi-Fi, and Bluetooth, and displaying information on the built-in OLED display.

Leveraging LoRa Node Chip & USB to Serial Chip

The LoRa node chip and USB to serial chip on the Heltec WiFi Lora 32 V3 module provide powerful connectivity options for your IoT applications. You can use the LoRa node chip to establish long-range wireless communication with other IoT devices, while the USB to serial chip allows you to easily program and debug your module using a USB connection.

Utilizing Wi-Fi & Bluetooth Compatibility

The Heltec WiFi Lora 32 V3 IoT module offers Wi-Fi and Bluetooth compatibility, making it easy to connect with a wide range of IoT devices and networks. You can use the Wi-Fi and Bluetooth features to establish secure and reliable connections with your IoT devices, allowing you to monitor and control them remotely.
