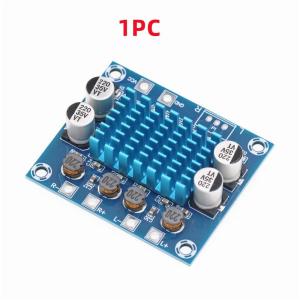

ZCAUTO 1/2pcs TPA3110 XH-A232 30W+30W DC 8-26V 3A 2.0 Digital Stereo Audio Power Amplifier Board

Product Overview & Key Features

The ZCAUTO TPA3110 XH-A232 30W+30W DC 8-26V 3A 2.0 Digital Stereo Audio Power Amplifier Board is a powerful and reliable audio solution for various applications, including computers and other electronic devices. This board is designed to deliver high-quality sound with minimal distortion and noise.

TPA3110 Chipset

The TPA3110 chipset is at the heart of this amplifier board. It is a Class-D digital audio power amplifier with excellent efficiency and low distortion. The TPA3110 is known for its high output power, low noise, and wide operating voltage range, making it ideal for use in various audio applications.

XH-A232 Amplifier Component

The XH-A232 amplifier component complements the TPA3110 chipset by providing additional functionality and performance enhancements. This component ensures optimal audio quality and stability, even under challenging conditions.

DC 8-26V Power Supply

The ZCAUTO amplifier board supports a wide range of input voltages, from 8V to 26V DC. This versatility allows users to power the board using various power sources, including batteries, wall adapters, and other DC power supplies.

Technical Specifications & Performance

The ZCAUTO TPA3110 XH-A232 amplifier board boasts impressive technical specifications and performance characteristics, making it an excellent choice for audio enthusiasts and professionals alike.

30W+30W Power Dissipation

The amplifier board delivers up to 30W of power per channel, providing ample output for most audio applications. This high power output ensures clear and powerful sound reproduction, even at high volumes.

2.0 Digital Stereo Amplifier

The ZCAUTO amplifier board supports 2-channel digital stereo audio, allowing users to enjoy rich and immersive sound experiences. The digital nature of the amplifier ensures accurate and faithful sound reproduction, free from analog distortion and noise.

Output Impedance & Current

The amplifier board supports output impedances ranging from 4 to 8 ohms, making it compatible with a wide range of speakers and audio devices. Additionally, the board provides a maximum current output of 3A, ensuring stable and reliable performance even under demanding conditions.

Application & Installation Guide

The ZCAUTO TPA3110 XH-A232 amplifier board is versatile and can be used in various applications, including computers and other electronic devices. The following guide provides a step-by-step installation process and important considerations for optimal performance.

Computer Application

The ZCAUTO amplifier board can be easily integrated into computer systems to enhance audio quality and performance. To install the board, simply connect it to the computer's audio output using the appropriate cables and power it using a compatible DC power supply.

Signal-to-Noise Ratio

The ZCAUTO amplifier board features a high signal-to-noise ratio of 100dB, ensuring clear and noise-free sound reproduction. This high signal-to-noise ratio is essential for achieving optimal audio quality and minimizing unwanted noise and distortion.

Size & Weight

The ZCAUTO amplifier board measures 53mm x 45mm x 14mm and weighs only 21g, making it compact and lightweight. This compact size and weight make the board easy to install and integrate into various devices and systems.

Conclusion

The ZCAUTO TPA3110 XH-A232 30W+30W DC 8-26V 3A 2.0 Digital Stereo Audio Power Amplifier Board is a powerful and versatile audio solution that delivers high-quality sound with minimal distortion and noise. With its wide range of input voltages, impressive technical specifications, and easy installation process, this amplifier board is an excellent choice for audio enthusiasts and professionals alike.
