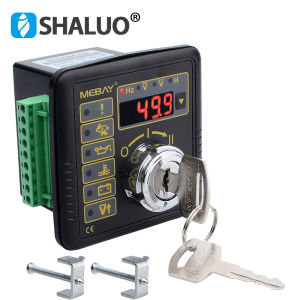

Multifunctional DC10G DC10K Generator Engine Controller Manual Start-Stop Controller CE Authentication

Origin: Mainland ChinaImport Or Not: NoOrder Number: 123456Customized Processing: YesItem No.: Ab077Model: DC 10G, DC 10KProduct Certification: 123456Main Downstream Platforms: AliexpressMain Sales Area: North AmericaAuized Private Brands: YesWhether Cross-Border Export Is Exclusively Available: YesItem No.: Ab077

Multifunctional Dc10g Dc10k Generator Set Controller Engine Manual Start and Stop Controller CE Certification Description:

Dc10g Is a Controller for Manually Starting and Stopping the Engine. 4-Digit LED Digital Tube Shows Generator Set Frequency,, Battery and Accumulated Working Time. With a Variety of Parking Protection and Alarm Indication Functions, It Can Conveniently Monitor the Working Status of the Generator Set. The Controller Can Be Connected to the Computer through the Data Cable, and the Controller Parameters Can Be Set by Software to Easily Match More Specifications of the Generator Set. Dc10g/Dc10k: Similar Functions, but Different Wiring

Group Introduction:

1. Indicators Generator FrequencyOverspeed/Underspeed   GeneratorLow Oil Pressure   BatteryHigh Water Temperature   Cumutative timeAbnormal Charging   Emergency StopOvervoltage   Note:

1. after the Overspeed Alarm, the Overspeed Value Is Displayed by Flash.
2. Flash Displays the Overvoltage Value after Overvoltage Alarm.
3. Charging Failure Will Be Displayed as an Alarm Indication, but the Engine Will Not Be Stopped.

2. Button Introduction   Display Button: Four State Switches (Generator, Power Generation Frequency, Battery, Cumutative Time). In the Power but Stop Mode, Press the Page Button Within 5 Seconds below the Module, and the Frequency Can Be Switched between 50Hz and 60Hz.   Operation:
3. Power on: Switch "0" to "I" until the Tube Lights up. during The Crank Process, If the Crank Fails after 45 Seconds, the Overspeed Indicator Light Will Be on (the Controller Will Cut off the Output of the Fuel Solenoid Valve and Enter the Protection State)
4. Start Running: Switch "I" to "II" until the Engine Starts. Once the Engine Is Powered on, It Will Be Cranked. If the Startup Is Successful, the Controller Will Enter the Running State after 8 Seconds. The Controller Then Monitors Relevant Parameters and Sets Protection. (the Controller Will Cut off the Output of the Fuel Solenoid Valve and Display the Alarm Status When the Generator Set Stops. Switch from "I" to "0".
5. Stop Resetting: Switch from "I" to "0" and Disconnect the Power Supply.   Parameter Settings:   Connect the Module to the PC through the Communication Cable and Power on.
6. Alarm Settings

Overspeed Alarm: 1710Rpm (Rated 50Hz),2040Rpm (Rated 60Hz), Range: 0-4000Rpm, When Rpm Exceeds This Value and Remains More than 1 Second, the Controller Will Alarm and Stop.

Over-Frequency Alarm: 57Hz (Rated 50Hz),68Hz (Rated 60Hz), Range: 40-80Hz. When the Frequency Exceeds This Value and Remains More than 1 Second, the Controller Will Alarm and Stop.

Low Frequency Alarm: 20Hz, Range: 20-60Hz, When the Frequency Is Lower than This Value and Remains More than 5 Seconds, the Controller Will Alarm and Stop.

Overvoltage Alarm: 500V, Range: 50-500V,500V Is Set to Forbidden. When the Exceeds This Value and Remains for More than 5 Seconds, the Controller Will Alarm and Stop.

Charging Failure D-Value: 6V, Range: 1-24v. When the Different Value between Charging D and Battery B Exceeds This Value and Remains for More than 5 Seconds, the Controller Will Alarm.

2. Display Settings

Four-Screen Self-Loop Display: After This Option Is Selected, the Parameters Should Be Switched in Time According to the Interval.

Home Page Option: after Selecting This Function, a Parameter Can Be Displayed as the Home Page. After Pressing the Page Change Button for a Period of Time, the Page Will Automatically Switch.

Rollback Delay: the Time When the Rollback Is Returned to the Home Page.

Auto-Loop Display Time: Interval Setting.



Technical Specifications:

Power Supply: 8-33V DC

Power Consumption: Maximum 2W (Working)

AC Generator Input: 15-300vac, 50/60H

Speed Input: Frequency 300Hz ~ 10Kh

Fuel Output: Maximum 16

Startup Output: Maximum 10

Excitation Output: Maximum 80M

Alarm Output: Maximum 16

Operating Temperature:-30-75

Storage Temperature:-40-85

Size: 78X78X72 M

Panel Hole: 67 × 67M

Weight: 280G

Note: -Due to Lighting Effects, Monitor Brightness, Contrast Settings, Etc., There May Be Some Slight Differences between the Color Tone of the Picture and the Color Tone of the Actual Project.
