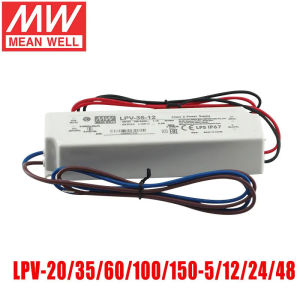

MEAN WELL LPV-60-12: A Comprehensive Guide to Single Output LED Driver Switching Power Supply

Overview of MEAN WELL LPV-60-12

The MEAN WELL LPV-60-12 is a versatile single output LED driver switching power supply designed to deliver reliable performance across a wide range of applications. This high-quality power supply offers output power from 20W to 150W, making it suitable for various LED lighting fixtures and appliances. The LPV Series features constant voltage design, universal AC input, and full range compatibility, providing flexibility and convenience for users.

Key Specifications & Features

• Output Power: 20W to 150W
• Output Current: 0-10A
• Model Number: LPV Series
• Output Frequency: 47 - 63Hz
• Output Type: SINGLE
• Origin: Mainland China
• Certification: CE, EAC, UL
• Protection: Short Circuit/Overload/Over Voltage
• Cooling: Free air convection
• Encapsulation: Fully encapsulated with IP67 level
• Case: Fully isolated plastic case
• Power Unit Class: Class II power unit, no FG
• Compliance: Pass LPS
• Warranty: 2 years

Compatibility & Applications

The MEAN WELL LPV-60-12 is suitable for LED-related fixtures and appliances, including decoration and advertisement devices. Its wide range of output voltage and power makes it a versatile choice for various applications.

Understanding the Benefits of MEAN WELL LPV-60-12

High Reliability & Efficiency

The MEAN WELL LPV-60-12 offers high reliability and efficiency, thanks to its constant voltage design, universal AC input, and full range compatibility. It can withstand a 300VAC surge input for 5 seconds, ensuring stable performance under challenging conditions. Additionally, it features short circuit, overload, and overvoltage protections, making it a safe and reliable choice for LED lighting systems.

Cost-Effective Solution

The MEAN WELL LPV-60-12 is a cost-effective solution for LED lighting systems, offering low-cost, high-reliability performance. It has passed 100% full load burn-in tests, ensuring its durability and longevity. With a 2-year warranty, users can enjoy peace of mind knowing their investment is protected.

Wide Range of Output Voltage & Power

The MEAN WELL LPV-60-12 offers a wide range of output voltage and power, from 5V to 48V and 20W to 150W, respectively. This versatility makes it an ideal choice for various LED lighting fixtures and appliances.

Installation & Usage Guide

Precautions Before Installation

Before installing the MEAN WELL LPV-60-12, users should ensure they have read and understood the installation manual thoroughly. They should also verify that the power supply meets their specific requirements, including output voltage, power, and compatibility with their LED lighting system.

Step-by-Step Installation Process

1. Unpack the power supply and verify its components.
2. Connect the input wires to the appropriate terminals.
3. Connect the output wires to the LED lighting system.
4. Mount the power supply securely in place.
5. Power on the system and test its functionality.

Troubleshooting Common Issues

If users encounter issues with the MEAN WELL LPV-60-12, they can refer to the troubleshooting guide in the installation manual. Common issues include incorrect wiring, short circuits, and overload conditions. Users should also consult the manufacturer's customer support if needed.

Conclusion & Final Thoughts

Key Takeaways

The MEAN WELL LPV-60-12 is a versatile single output LED driver switching power supply that offers high reliability, efficiency, and cost-effectiveness. Its wide range of output voltage and power makes it suitable for various LED lighting fixtures and appliances, while its constant voltage design, universal AC input, and full range compatibility provide flexibility and convenience for users.

Final Recommendations

We recommend the MEAN WELL LPV-60-12 for users looking for a reliable and efficient LED driver switching power supply. Its cost-effective solution, wide range of output voltage and power, and compatibility with various LED lighting systems make it an ideal choice for both residential and commercial applications.
