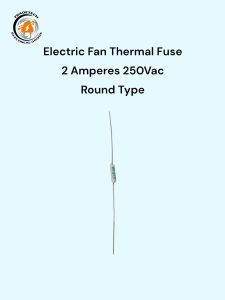

Electric Fan Thermal Fuse 2 Amperes 250Vac Round/Square Type

Electric fan thermal fuses are a critical component of electrical safety, designed to protect fans from overheating and potential hazards. This article will explore the features, benefits, installation process, and troubleshooting tips for the 2 Amperes 250Vac round/square type electric fan thermal fuse.

What is a Thermal Protection Device?

A thermal protection device, such as an electric fan thermal fuse, is a safety component that automatically disconnects power when a predetermined temperature threshold is reached. This prevents overheating and potential damage to the electric fan.

Key Features of Thermal Protection Devices

• Automatic Disconnection: Disconnects power supply when the device reaches a specific temperature threshold.
• Resettable: Some thermal protection devices can reset automatically once the temperature drops below the threshold.
• Compact Design: Thermal fuses are small and easy to integrate into electric fans.

Benefits of Using a Thermal Protection Device

• Enhanced Safety: Protects against overheating and potential hazards.
• Longevity: Extends the lifespan of electric fans by preventing damage from excessive heat.
• Cost-Efficiency: Reduces the risk of costly repairs or replacements due to overheating.

Understanding Electric Fan Thermal Fuses

Electric fan thermal fuses are designed specifically for electric fans, providing thermal protection against potential hazards caused by overheating.

How Electric Fan Thermal Fuses Work

Electric fan thermal fuses work by monitoring the temperature of the fan's motor. When the temperature exceeds the predetermined threshold, the fuse disconnects the power supply, preventing damage to the fan.

Key Components of Electric Fan Thermal Fuses

• Temperature Sensor: Monitors the temperature of the fan's motor.
• Thermal Switch: Disconnects power supply when the temperature exceeds the threshold.
• Reset Mechanism: Some thermal fuses can reset automatically once the temperature drops below the threshold.

How to Install an Electric Fan Thermal Fuse

Installing an electric fan thermal fuse is a straightforward process that requires a few basic tools and a step-by-step guide.

Tools Required for Installation

• Screwdriver: For removing screws and opening the fan housing.
• Wire Strippers: For stripping wires.
• Soldering Iron: For soldering wires.
• Multimeter: For testing the continuity of the circuit.

Step-by-Step Installation Guide

1. Prepare the Fan: Turn off the power supply and remove the fan housing.
2. Locate the Motor: Identify the motor and its wiring.
3. Remove Existing Thermal Fuse (if applicable): If there is an existing thermal fuse, carefully remove it.
4. Install New Thermal Fuse: Connect the new thermal fuse to the motor wiring using wire strippers and a soldering iron.
5. Test Continuity: Use a multimeter to test the continuity of the circuit.
6. Reassemble the Fan: Replace the fan housing and turn on the power supply.

Troubleshooting Common Issues with Electric Fan Thermal Fuses

Even with proper installation, electric fan thermal fuses can sometimes malfunction. Here are some common issues and their solutions.

Identifying Faulty Thermal Fuses

A faulty thermal fuse may cause the fan to stop working or make unusual noises. To identify a faulty thermal fuse, check for:

• Overheating: Excessive heat from the fan motor.
• Unusual Noises: Strange sounds coming from the fan.
• Fan Not Working: The fan may stop working altogether.

Replacing a Faulty Thermal Fuse

If you identify a faulty thermal fuse, replace it by following the installation steps outlined above. Remember to use the correct type of thermal fuse for your electric fan (2 Amperes 250Vac round/square type).

In conclusion, electric fan thermal fuses are essential components that ensure the safety and longevity of electric fans. By understanding how they work, installing them correctly, and troubleshooting common issues, you can keep your electric fans running smoothly and safely.
